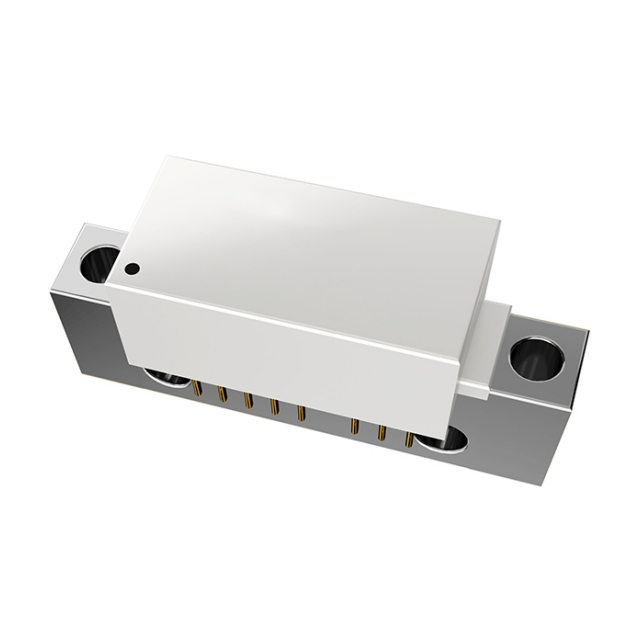

The ADCA3990AMLZ is a power multiplier hybrid module in an industry standard SOT115J package. By using advanced circuit design techniques, the device can achieve very high RF outputs, up to 76.8 dBmV of composite power, or 67 dBmV virtual level, such as gallium arsenide (GaAs) pseudo-crystalline high electron mobility transistor (pHEMT) die and gallium nitride (GaN) HEMT die. The DC supply and supply voltage can be externally adjusted to achieve better distortion performance and power consumption over a range of output levels.

Product Attributes

Frequency: 45MHz ~ 1.218GHz

Gain: 24.5dB

Noise figure: 4dB

RF Type: CATV

Voltage - Supply: 24V ~ 34V

Current - Supply: 535mA

Test Frequency: 1.218GHz

Mounting Type: Chassis Mount

Package/Shell: SOT-115J

Supplier Device Package: SOT-115J

Applications

● 45 MHz to 1218 MHz Community Access Television (CATV) infrastructure amplifier systems

● Remote PHY (physical layer) and fibre depth nodes

● DOCSIS® 3.1 compatible
