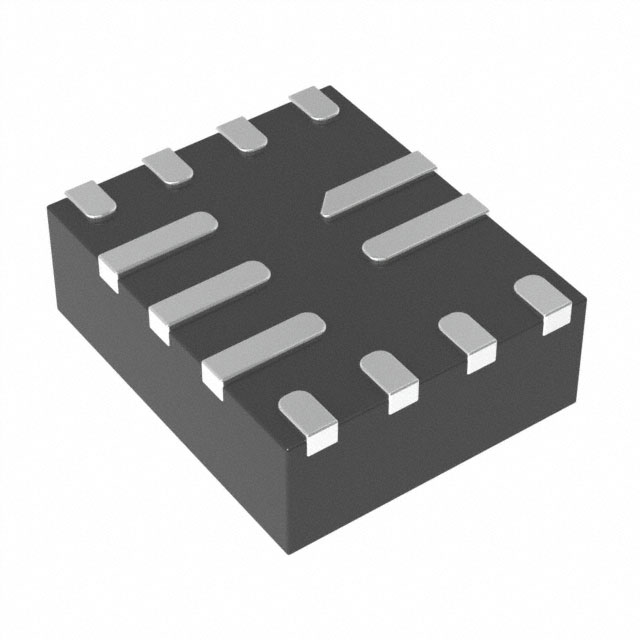

Commodity Model:ADCA3280ACEZ

Trade Name:ADCA3280ACEZ

Data Manual:ADCA3280ACEZ.pdf

Brand:ADI

Particular Year:23+

Package:LGA-9

Delivery Date:New and Original

Stock: 1000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ADI
Model
ADCA3280ACEZ
Package
LGA-9
Describe
DOCSIS 4.0, 24 V Power Multiplier Amplifier, 45 MHz to 1794 MHz

Product Description

The ADCA3280ACEZ is a power multiplier with 22.7 dB power gain at 1794 MHz designed for operation in 24 V applications. The amplifier can also operate at lower supply voltages with excellent efficiency, as shown in Figures 10, 17, and 20. The device achieves high RF outputs with total composite power (TCP) up to 75 dBmV, excellent noise-to-power ratios (NPR) or equivalent modulation error ratios (MER), and channel loads up to 1.8 GHz and 1.2 GHz, making it ideally suited for use as an output stage device for DOCSIS 4.0 and DOCSIS 3.1 devices. The DC current and supply voltage can be externally adjusted to achieve excellent distortion performance and power consumption over the output level range.The ADCA3280ACEZ delivers high performance that helps simplify the design and manufacture of DOCSIS 3.1 and DOCSIS 4.0 infrastructure devices.


The ADCA3280ACEZ is available in a 9-pin, 9 mm x 8 mm industry standard LGA package.


Features

Excellent linearity with TCP up to 75 dBmV

Power gain: 22.7 dB (1794 MHz)

S11: < -17 dB (108 MHz to 1794 MHz)

S22: < -19 dB (108 MHz to 1794 MHz)

Flexible supply voltage range: 24 V to 18 V

Adjustable supply current: 570 mA to 450 mA

Built-in precision reference voltage source improves current stability over process and temperature ranges

Internal temperature monitor

9-pin, 9 mm x 8 mm LGA_CAV industry standard surface mount package

Excellent thermal conductivity


Applications

258 MHz to 1794 MHz extended spectrum CATV infrastructure amplifier systems

108 MHz to 1218 MHz CATV infrastructure amplifier systems

Remote nodes

DOCSIS 3.1 and 4.0 compliant

Associated Products

Model

Brand

Package

Quantity

Describe

ADL8109ACPZN

ADI

LFCSP-8

3000

High survivability and low noise amplifiers ranging from 1 GHz to 20 GHz

ADL8113ACCZ

ADI

LGA-28

3000

10MHz to 12GHz low-noise amplifier with 10MHz to 14GHz bypass switch

HMC752LC4

ADI

SMT-24

2500

GaAs HEMT MMIC LOW NOISE AMPLIFIER, 24 - 28 GHz

HMC516LC5

ADI

SMT-32

3000

SMT PHEMT LOW NOISE AMPLIFIER, 9 - 18 GHz

HMC517LC4TR

ADI

LGA-24

2500

Low Noise Amplifier in SMT Package, 17 - 26 GHz

MAX2180AETG

Maxim

TQFN-24

3000

AM/FM car antenna low noise amplifier

RFFM4227TR13

Qorvo

DFN-6

5000

2.4 GHz 802.11b/g/n Wi-Fi Low Noise Amplifier with Bypass

MMA042AA

Microchip

QFN

3000

2GHz to 26GHz Distributed Amplifier Chip

MMA043PP4

Microchip

QFN-24

3000

0.5GHz to 12GHz, 4x4 SMT, Low Noise Broadband Amplifier

ADL8103ACPZN

ADI

LFCSP-8

3000

High Input Survivability, Low Noise Amplifier, 6 GHz to 12 GHz
