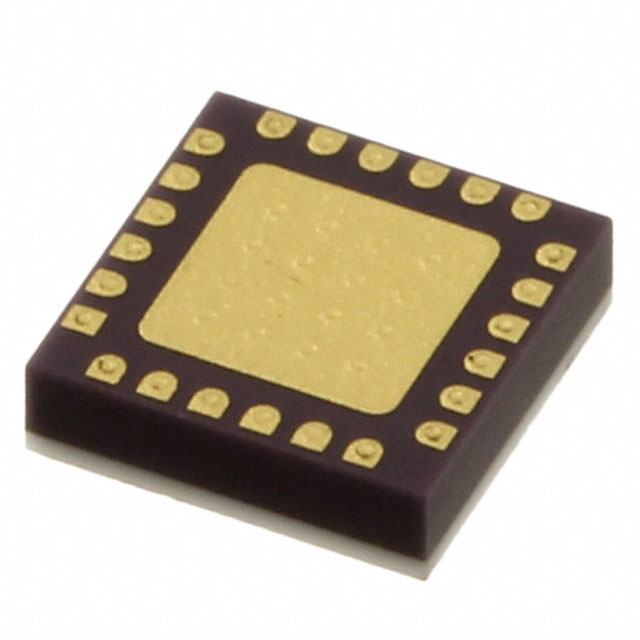

The HMC752LC4 is a GaAs MMIC low-noise wideband amplifier, featuring a pin-free 4x4mm ceramic surface mount package. The operating frequency range of this amplifier is 24 to 28 GHz, providing a small-signal gain of up to 25 dB, a noise figure of 2.5 dB, and an output IP3 of +26 dBm. Meanwhile, the power consumption when using a +3V power supply is only 70 mA.

The P1dB output power of up to +13 dBm enables the LNA to be used as the LO driver for balanced, I/Q or image suppression mixers. The HMC752LC4 also features DC blocking I/O and is internally matched with 50 Ohms, making it highly suitable for high-capacity microwave radio or VSAT applications.

Main characteristics

Noise figure: 2.5 dB

Gain: 25 dB

Output power of P1dB: +13 dBm

Power supply voltage: +3V (70mA)

Output IP3: +26 dBm

50 Ω matched input/output

24-pin 4x4mm SMT package: 16mm²

Application field

The HMC752LC4 amplifier is suitable for a variety of wireless communication systems, especially performing well in high-capacity microwave radio and VSAT applications. Its low noise and high gain enable it to maintain signal integrity when receiving weak signals, making it suitable for satellite communications, wireless base stations and other applications that require high linearity and low distortion ‌.
