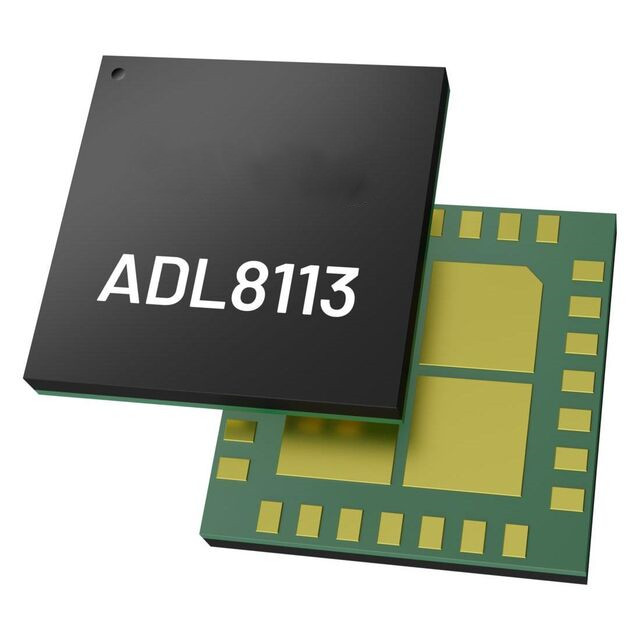

Commodity Model:ADL8113ACCZ

Trade Name:Low Noise Amplifier

Brand:ADI

Particular Year:25+

Package:LGA-28

Delivery Date:New and original

Stock: 3000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ADI
Model
ADL8113ACCZ
Package
LGA-28
Describe
10MHz to 12GHz low-noise amplifier with 10MHz to 14GHz bypass switch

Product Description

The ADL8113ACCZ is a low-noise amplifier (LNA) with a bypass switch, providing wideband operation from 10MHz to 12GHz. Its main characteristics are as follows:

Broadband amplifiers with multiple bypass modes

There are 4 selectable operation modes for pins

The operating frequency of the internal amplifier mode is from 10MHz to 12GHz

The operating frequency of the internal bypass mode is from 10MHz to 14GHz

Two external bypass modes from 10MHz to 14GHz

Integrated power decoupling

Reflective bypass switch

Internal amplifier mode

Small-signal gain: The typical value is 14.0dB from 200MHz to 6GHz

OP1dB: The typical value is 20.5dBm from 200MHz to 6GHz

OIP3: The typical value is 35.5dBm from 200MHz to 6GHz

OIP2: The typical value is 44.6dBm from 9GHz to 12GHz

The noise index is typically 3.8dB within the range of 200MHz to 6GHz

Internal bypass switch mode

Insertion loss: The typical value within the range of 200MHz to 6GHz is 2.2dB

Operating temperature range: -40 °C to +85°C

A 6mm × 6mm, 28-terminal LGA that complies with RoHS standards


The ADL8113ACCZ offers a low noise figure of 3.8dB and an output third-order cut-off point (OIP3) of 35.5dBm within the range of 200MHz to 6GHz. The ADL8113ACCZ offers a small-signal gain of 14.0dB, which is stable across frequency, temperature, power supply and devices.


Application scenarios

The ADL8113ACCZ is widely used in various application scenarios, including but not limited to:

Electronic test and measurement equipment

Electronic warfare

Wireless receiver
