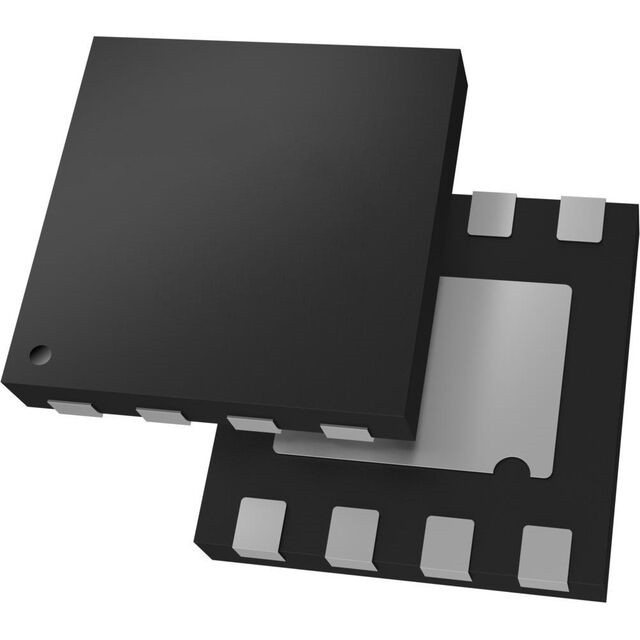

Commodity Model:ADL8109ACPZN

Trade Name:Low Noise Amplifier

Brand:ADI

Particular Year:25+

Package:LFCSP-8

Delivery Date:New and original

Stock: 3000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ADI
Model
ADL8109ACPZN
Package
LFCSP-8
Describe
High survivability and low noise amplifiers ranging from 1 GHz to 20 GHz

Product Description

The ADL8109ACPZN is a low-noise amplifier (LNA) ranging from 1 GHz to 20 GHz, with an RF input power survivability of 36.5 dBm. This device has the following main characteristics:

High RF input power survivability: 36.5 dBm

RBIAS drain current adjustment pin

Gain: 15 dB within the range of 8 GHz to 18 GHz

The noise index is 3 dB within the range of 8 GHz to 18 GHz

Extended operating temperature range: -55 °C to +125°C

A 2 mm x 2 mm, 8-pin LFCSP package in compliance with RoHS standards


The gain of ADL8109ACPZN is 15 dB, the output power of 1dB compression (OP1dB) is 16 dBm, the typical output third-order intercept (OIP3) is 28 dBm, and the noise figure from 8 GHz to 18 GHz is 3 dB. This LNA operates at a power supply voltage of 5 V (V DD) and has a nominal quiescent current of 110 mA (IDQ). The ADL8109ACPZN also features internally matched RF inputs and outputs up to 50 Ω.


Application scenarios

The ADL8109ACPZN is suitable for various application scenarios that require high-performance and low-noise amplification, including:

Telecommunications

Satellite communication

Military radar

Civilian radar

Electronic warfare

Testing and measuring equipment
