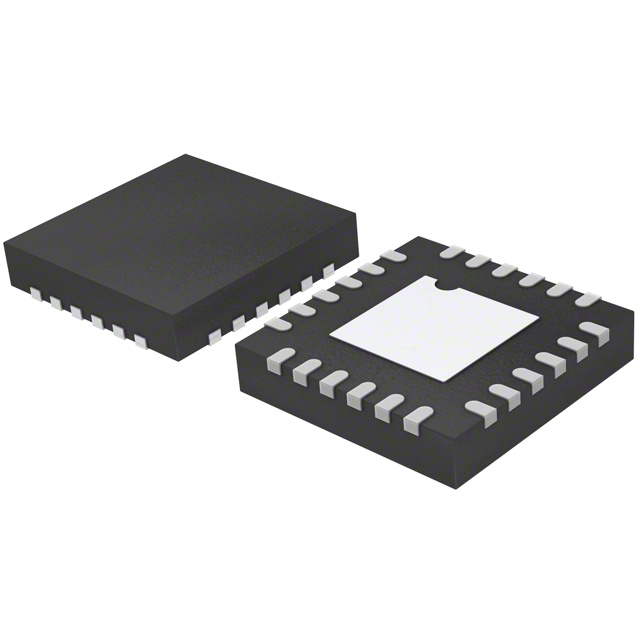

Commodity Model:ADL7078ACPZN

Trade Name:ADL7078ACPZN

Data Manual:ADL7078ACPZN.pdf

Brand:ADI

Particular Year:23+

Package:LFCSP-24

Delivery Date:New and Original

Stock: 1000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ADI
Model
ADL7078ACPZN
Package
LFCSP-24
Describe
High Survivability, Low Noise Amplifier, 1 GHz to 20 GHz

Product Description

The ADL7078ACPZN is a 1 GHz to 20 GHz low-noise amplifier (LNA) with 32 dBm RF input power survivability. Integrated AC coupling capacitors and bias inductors enable a compact printed circuit board (PCB) footprint.


The ADL7078ACPZN has a gain of 13 dB, 1 dB compressed output power (OP1dB) of 16.5 dBm, a typical output third-order intercept (OIP3) of 28 dBm, and a noise figure of 4.4 dB from 2 GHz to 18 GHz. The LNA utilizes a 5 V supply voltage (VDD) and a nominal quiescent current (IDQ) of 175 mA.


The ADL7078ACPZN is fabricated using a gallium arsenide (GaAs), mimetic high electron mobility transfer (pHEMT) process. The device is available in a RoHS-compliant 24-lead, 4.00 mm × 4.00 mm lead-frame chip-size package [LFCSP] and operates over the -40°C to +85°C temperature range.


Features

High RF input power survivability: 32 dBm

Integrated AC coupling capacitor and bias inductor

Single positive supply: 5 V, IDQ = 175 mA

RBIAS drain current adjustment pin

Gain: 13 dB typical from 2 GHz to 18 GHz

OIP3: 28 dBm typical from 2 GHz to 18 GHz

OIP2: 48 dBm typical from 2 GHz to 18 GHz


Applications

Electronic warfare

Test and measurement equipment

Satellite communications

Associated Products

Model

Brand

Package

Quantity

Describe

ADL8109ACPZN

ADI

LFCSP-8

3000

High survivability and low noise amplifiers ranging from 1 GHz to 20 GHz

ADL8113ACCZ

ADI

LGA-28

3000

10MHz to 12GHz low-noise amplifier with 10MHz to 14GHz bypass switch

HMC752LC4

ADI

SMT-24

2500

GaAs HEMT MMIC LOW NOISE AMPLIFIER, 24 - 28 GHz

HMC516LC5

ADI

SMT-32

3000

SMT PHEMT LOW NOISE AMPLIFIER, 9 - 18 GHz

HMC517LC4TR

ADI

LGA-24

2500

Low Noise Amplifier in SMT Package, 17 - 26 GHz

MAX2180AETG

Maxim

TQFN-24

3000

AM/FM car antenna low noise amplifier

RFFM4227TR13

Qorvo

DFN-6

5000

2.4 GHz 802.11b/g/n Wi-Fi Low Noise Amplifier with Bypass

MMA042AA

Microchip

QFN

3000

2GHz to 26GHz Distributed Amplifier Chip

MMA043PP4

Microchip

QFN-24

3000

0.5GHz to 12GHz, 4x4 SMT, Low Noise Broadband Amplifier

ADL8103ACPZN

ADI

LFCSP-8

3000

High Input Survivability, Low Noise Amplifier, 6 GHz to 12 GHz
