The LP5864MRSMR devices are high performance LED matrix drivers. The devices integrate 18 constant current traps with N (N = 1/2/4/6/8/11) switching MOSFETs to support N × 18 LED dots or N × 6 RGB LEDs.The LP5864MRSMR integrates 4 MOSFETs to support up to 72 LED dots or 24 RGB LEDs.

Product Properties

Product Category: LED Lighting Drivers

Series: LP5864

Mounting Style: SMD/SMT

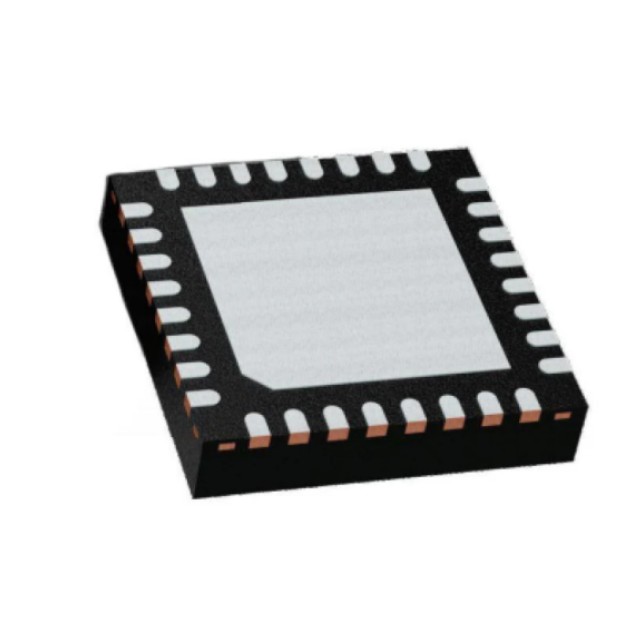

Package / Case: VQFN-32

Number of Outputs: 18 Outputs

Output Current: 50 mA

Input voltage (min): 2.7 V

Input voltage (max): 5.5 V

Topology: Boost, Buck

Operating frequency: 31.2 MHz

Output Voltage: Adjustable

Minimum operating temperature: - 55 C

Maximum operating temperature: + 125 C

Features: I2C Control, Charge Pump

Development Kit: LP5860EVM

For use with: LED Animation and Indication

Input Voltage: 2.7 V to 5.5 V

Humidity Sensitivity: Yes

Number of Channels: 18 Channel

Product: LED Drivers

Product Type: LED Lighting Drivers

Factory Package Quantity: 3000

Sub Category: Driver ICs

Supply Current - Max: 6 mA

Type: RGB LED Drivers

Applications

- LED animation and indication for the following devices:

- Keyboards, mice and gaming accessories

- Large and smart home appliances

- Smart speakers, wired and wireless speakers

- Mixers, DJ equipment, and broadcasting

- Access devices, switches, and servers

- Constant current traps for optical modules
