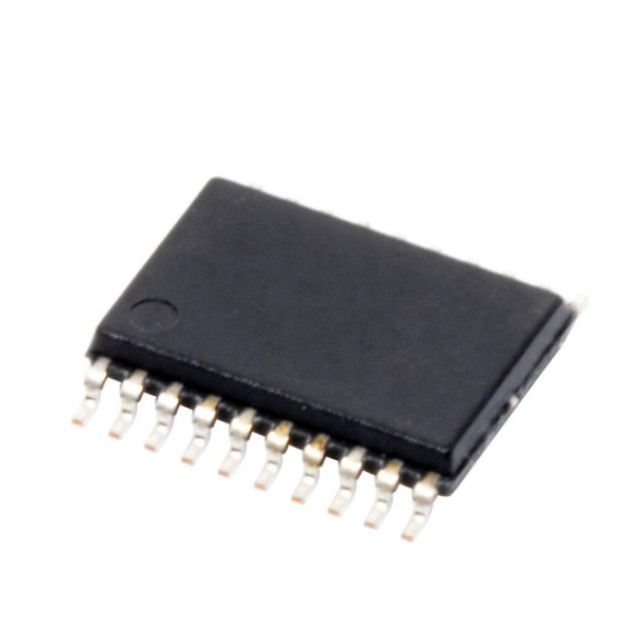

The ADN4650BRSZ is a signal-isolated, low-voltage differential signal (LVDS) buffer with data rates up to 600 Mbps and extremely low jitter.

The device integrates ADI's iCoupler® technology for enhanced high-speed operation, providing TIA/EIA-644-A-compliant electrical isolation of the LVDS driver and receiver. This technology enables direct isolation of the LVDS signal chain.

Benefits and Features

3.75 kV rms LVDS Isolator

TIA/EIA-644-A LVDS compliant

Multiple dual-channel configurations

Up to 600 Mbps switching rate with low jitter

Propagation delay: 4.5 ns (maximum)

Total peak-to-peak jitter: 151 ps (max, 600 Mbps)

Maximum pulse skew: 100 ps

Maximum inter-device skew: 600 ps

2.5 V or 3.3 V supply

-75 dBc power supply ripple and burr rejection

±8 kV IEC 61000-4-2 ESD barrier protection

High common-mode transient immunity: >25 kV/μs

600 Mbps PRBS frequency with EN55022 Class B radiation compliance

Safety and regulatory approvals (20-pin SOIC package)

UL: 5000 V rms for 1 minute per UL 1577

CSA Component Acceptance Notification 5A

VDE Certificate of Conformity

din v vde v 0884-10 (vde v 0884-10):2006-12

VIORM = 424 V peak

Fail-safe for open, short-circuit and terminated inputs to ensure a high output level

Operating temperature range: -40°C to +125°C

Applications

Analogue front-end (AFE) isolation

Data plane isolation

Isolates high-speed clock and data links

Isolated Serial Peripheral Interface (SPI) for LVDS
