The ADN4624BRNZ is a four-channel, signal-isolated, low-voltage differential-mode-signal (LVDS) buffer that delivers data rates up to 2.5 Gbps with very low jitter. The kit integrates ADI's iCoupler® technology, which has been enhanced for high-speed operation, to provide plug-in electrical isolation of the LVDS signal chain. AC coupling and/or level shifting to the LVDS receiver and from the LVDS driver allows isolation of other high-speed signals such as current mode logic (CML).

Product Attributes

Technology: Magnetic Coupling

Type: LVDS

Isolated Power Supply: None

Number of Channels: 4

Inputs - Side 1/Side 2: 4/0

Channel Type: Unidirectional

Voltage - Isolated: 5700Vrms

Common Mode Transient Immunity (min): 40kV/µs

Data Rate: 2.5Gbps

Propagation Delay tpLH / tpHL (max): 2.8ns, 2.8ns

Rise / Fall Time (typical): 180ns, 180ns (max)

Voltage - Supply: 1.7V ~ 1.9V

Operating Temperature: -40°C ~ 125°C

Mounting Type: Surface Mount

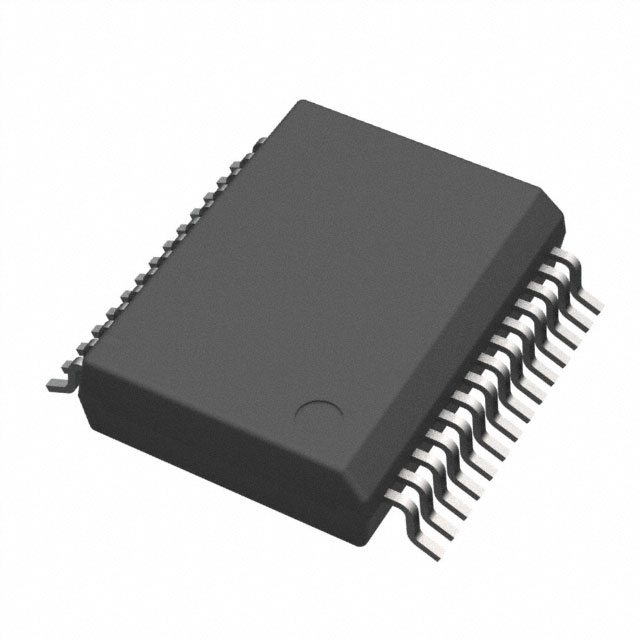

Package/Shell: 28-BSSOP (0.295", 7.50mm Width)

Supplier Device Package: 28-SOIC-W-FP

Applications

● Isolation of video and imaging data

● Analogue front-end isolation

● Data plane isolation

● Isolation of high-speed clocks and data links

● Multi-gigabit serialisation/deserialisation (SERDES)

● Board-to-board fibre replacement (e.g. short-haul fibre)
