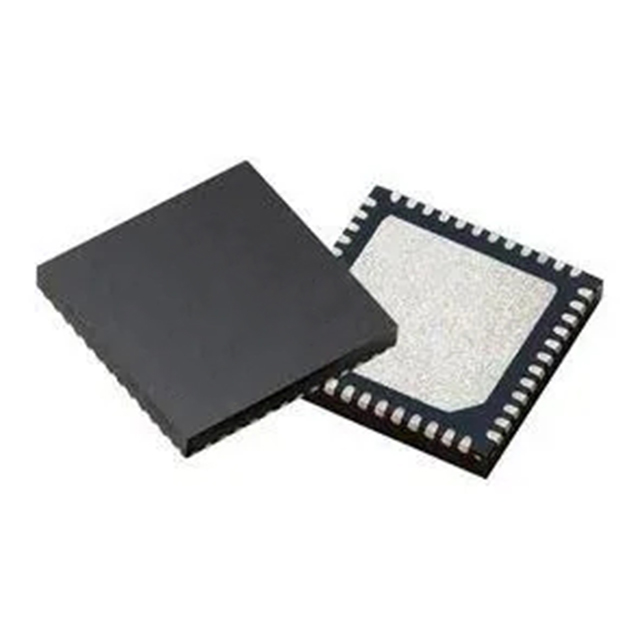

STPM066S-V0T is a multiple voltage regulator composed by one battery compatible BUCK pre-regulator, one BOOST, one LDO and a precise voltage reference regulator. All the regulators have internal power switches.

Features

AEC-Q100 qualified

Pre SMPS BUCK regulator, adjustable via OTP to 1.0 V, 1.1 V, 1.2 V, 1.35 V,1.5 V, 3.3 V, 3.6 V, 5.0 V at 1.35/2.6 A min peak current limit, 0.4/2.4 MHz

Post SMPS BOOST regulator, adjustable via OTP to 5.0 V at 0.3 A max load current, 7.0 V at 0.2 A max load current, 2.4 MHz

Post Linear regulator LDO, adjustable via OTP to 1.2 V, 1.25 V, 1.3 V, 1.8 V,2.5 V, 2.8 V, 3.3 V, 5.0 V at 300/600 mA max load current

Precise Voltage reference, adjustable via OTP to 1.8 V, 2.5 V, 3.3 V,4.1 V at 20 mA max load current

SPI interface with CRC

Programmable slew rate/soft start

Voltage supervisors

Spread frequency spectrum

Reset and reset sensitivity list

Adjustable window watchdog supervisors

Programmed power up phase via OTP

Short circuit protected outputs and Fault detection pin to Microcontroller

Low external components number

Thermal shutdown junction temperature 175 °C
