The TPS7B8401QWDRBRQ1 is a low-dropout linear regulator designed specifically for connecting batteries in automotive applications. The device has an input voltage range up to 40V and can withstand transients that may occur in automotive systems (such as sudden load drops). It features high output current, low quiescent current, and excellent line transient response characteristics, making it suitable for automotive gateway, remote keyless entry (RKE), and other always-on battery connection applications.

TPS7B8401QWDRBRQ1 Product Features

Compliant with AEC-Q100 standards:

Temperature grade 1: -40°C to +125°C (TA).

Junction temperature: -40°C to +150°C (TJ).

Input voltage range: 3V to 40V (maximum 42V).

Output voltage range:

Adjustable output: 1.2V to 18V.

Fixed output: 3.3V and 5V.

Output current: up to 150mA.

Output voltage accuracy: ±0.75% (maximum).

Low dropout voltage:

225mV (maximum) at 150mA (VOUT ≥ 3.3V).

Low quiescent current:

18µA (typical).

Maximum of 4µA when disabled.

Excellent line transient response:

±2% VOUT deviation during cold start.

±2% VOUT deviation (VIN slew rate 1V/µs).

Stability: Maintains stability when used with a 2.2µF or higher capacitor.

Functional safety support: Documentation to assist in functional safety system design.

TPS7B8401QWDRBRQ1 Product Specifications

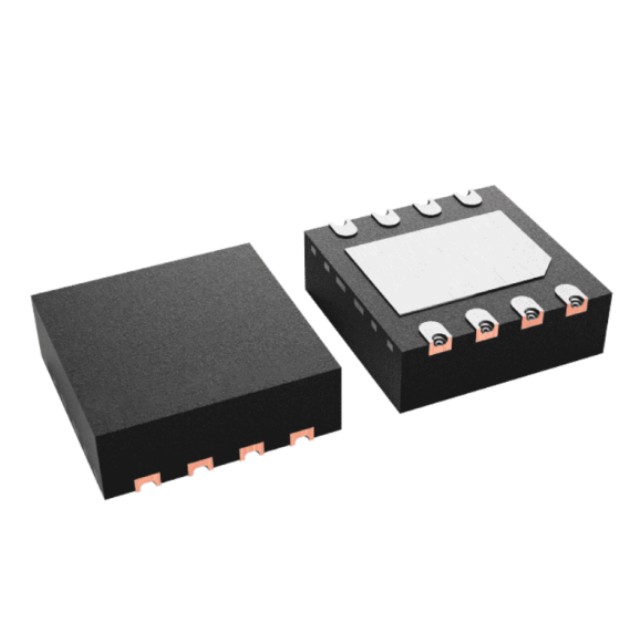

Package: VSON (DRB) 8-pin package, dimensions 3mm × 3mm.

Quiescent current: 26µA.

PSRR: 55dB (1kHz).

Protection features: Overcurrent, over-temperature, under-voltage lockout (UVLO).

TPS7B8401QWDRBRQ1 Application Areas

Automotive Electronics:

Reconfigurable instrument clusters.

Body control modules (BCM).

Always-on battery connection applications, such as automotive gateways and remote keyless entry (RKE).

Other Applications: Suitable for power management applications requiring high precision, low power consumption, wide input voltage range, and fast transient response, such as power modules for industrial automation equipment and power management for communication devices.
