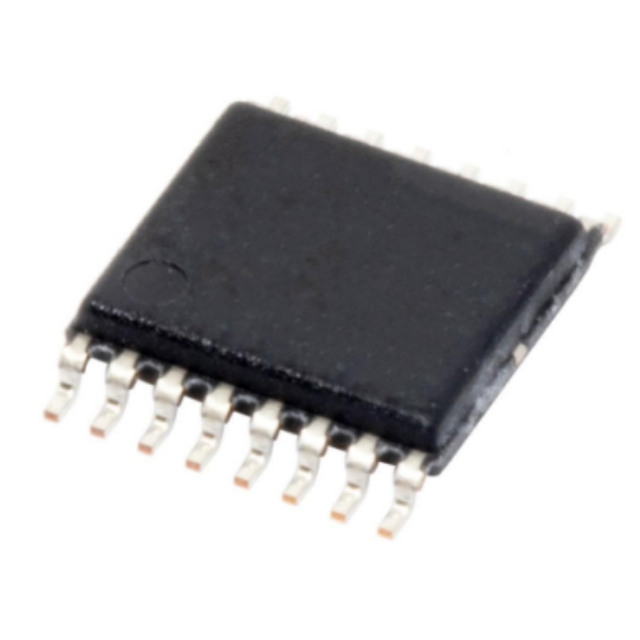

The ADUM340E1WBRWZ is a four-channel digital isolator based on ADI's iCoupler® technology. These isolation elements combine high-speed, complementary metal-oxide-semiconductor (CMOS) and back-to-back monolithic air-core transformer technology to provide excellent performance characteristics and meet the CISPR 32/EN 55032 Class B limit of 5Mbps. Maximum propagation delay is 10ns and pulse width distortion is less than 3ns at 5V operation, and channel matching is tight at 3.0ns maximum.

Product Attributes

Type: CAN, RS485, SPI

Isolated Power: Yes

Number of Channels: 4

Inputs - Side 1/Side 2: 4/0

Channel Type: Unidirectional

Voltage - Isolated: 10000Vrms

Common Mode Transient Immunity (min): 100kV/µs

Data Rate: 150Mbps

Propagation Delay tpLH / tpHL (max): 10ns, 10ns

Pulse Width Distortion (max): 3ns

Rise / Fall Time (typical): 2.5ns, 2.5ns

Voltage - Supply: 2.25V ~ 5.5V

Operating Temperature: -40°C ~ 125°C

Mounting Type: Surface Mount

Package/Case: 16-SOIC (0.295", 7.50mm Width)

Supplier Device Package: 16-SOIC

Applications

● Serial Peripheral Interface (SPI)/Data Converter Isolation

● RS-485 interfaces and controller LANs with flexible data rate (CAN FD) industrial fieldbus isolation

● PWM controller signal isolation

● General purpose multi-channel isolation
