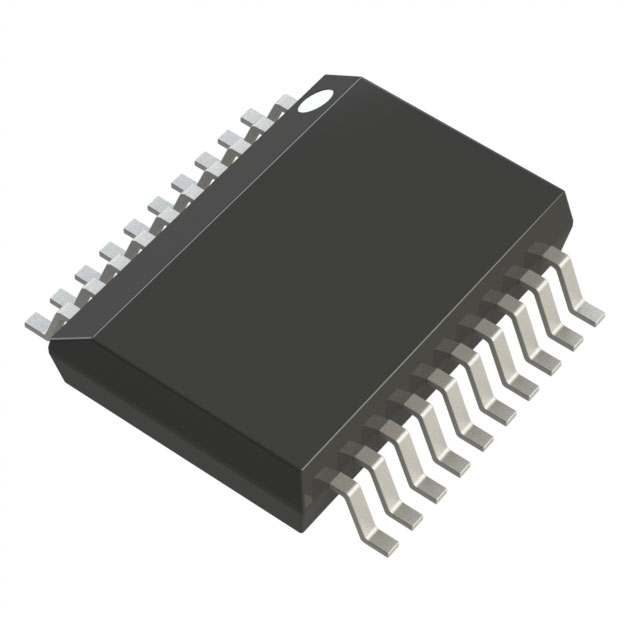

ADUM3165BRSZ is USB 2.0 port isolators, it support host isolation with automatic speed negotiation as well as peripheral isolation. High speed data is retimed for jitter reduction, requiring an external clock signal or crystal input.

ADUM3165BRSZ is 3.75 kV RMS Digital Isolators for Isolated USB 2.0 High, Full, and Low Speed.

Product Features

USB 2.0 signaling with automatic detection of low, full, and high speed connections

1.5 Mbps, 12 Mbps, and 480 Mbps data rates

Bidirectional USB isolator for upstream and downstream ports

Redriving and high speed data retiming for input jitter removal and an open eye

Flexible clock input options

4.5 V to 5.5 V VBUSx or 3 V to 3.6V operation on each side

21 mA typical idle, low or full speed mode supply current

48 mA typical idle, high speed mode supply current

Ultra low power standby in USB 2.0 suspend (L2) or disconnect

1.7 mA typical low power standby, upstream supply current

20 μA typical low power standby, downstream supply current

±6000 V IEC 61000-4-2 ESD protection across the isolation barrier

High common-mode transient immunity: 50 kV/μs typical

Operating temperature range: −55°C to +125°C

Applications

USB peripheral, USB host, and USB hub isolation

Electronic test and measurement equipment

Medical devices and integrated PCs

Industrial PCs and isolated USB ports for debug or upgrade

USB isolator modules and USB cable isolators
