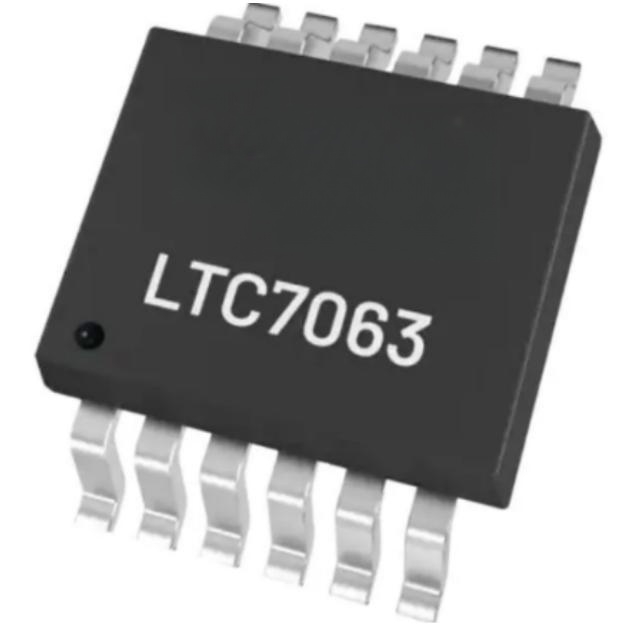

The LTC7063RMSE drives two N-channel MOSFETs in a half-bridge configuration with supply voltages up to 140 V. The high-end and low-end drivers can drive MOSFETs with different ground references, providing excellent transient immunity. Its powerful 0.8Ω pull-down and 1.5Ω pull-up MOSFET drivers enable the use of larger gate capacitance high-voltage MOSFETs. other features include UVLO, tri-state PWM inputs, adjustable turn-on/turn-off delays, and pass-through protection.

Features

● Unique symmetrical floating gate driver architecture

● High immunity to ±10V ground differences between input and output ground

● 140V maximum input voltage, independent of IC supply voltage VCC

● 6 V to 14 V VCC operating voltage

● 4V to 14V gate driver voltage

● 0.8Ω pull-down, 1.5Ω pull-up for fast turn-on/turn-off

● Adaptive pass-through protection

● Programmable dead time

● Tri-state PWM input with enable pin

Applications

● Automotive and industrial power systems

● Telecom power systems

● Half-bridge and full-bridge converters
