The ADRF5301BCCZN is a reflective single-pole four-throw (SPDT) switching IC developed specifically for 5G applications from 37 GHz to 49 GHz. The device has a low insertion loss of 1.4 dB, high isolation of 30 dB, and 28 dBm average and 36 dBm peak radio frequency (RF) input power processing capability.

Product Specifications:

Rf Type: mobile phone

Topology: Reflection

Circuit: SPDT

Frequency range: 37GHz ~ 49GHz

Isolation: 30dB

Insertion loss: 1.4dB

Test frequency: 40GHz

P1dB: 36dBm

IIP3:52dBm

Features: Single line control

Impedance: 50 ohms

Voltage - Power supply: 3.15V ~ 3.45V

Operating temperature: -40°C ~ 105°C

Mounting type: Surface mount type

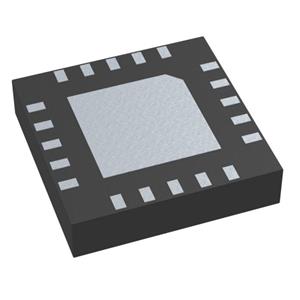

Package/housing: 20-VFLGA bare pad

Supplier Package: 20-LGA (3x3)

Basic product Number: ADRF5301

Applications:

Industrial scanner

Test instrument

Cellular infrastructure Millimeter wave 5G

Military Radio, Radar and Electronic Countermeasures (ECM)

Microwave RF and Very Small Aperture Terminal (VSAT)
