The LP8864SQRHBRQ1 high efficiency LED driver is equipped with a boost controller. The four high-precision current traps support phase shifting, i.e. they are automatically adjusted according to the number of channels used.LED brightness can be globally controlled via the I2C interface or PWM input. The boost converter provides adaptive output voltage control based on the residual voltage of the LED current traps.

Specification

Product Category: LED Lighting Drivers

Series: LP8864S-Q1

Mounting Style: SMD/SMT

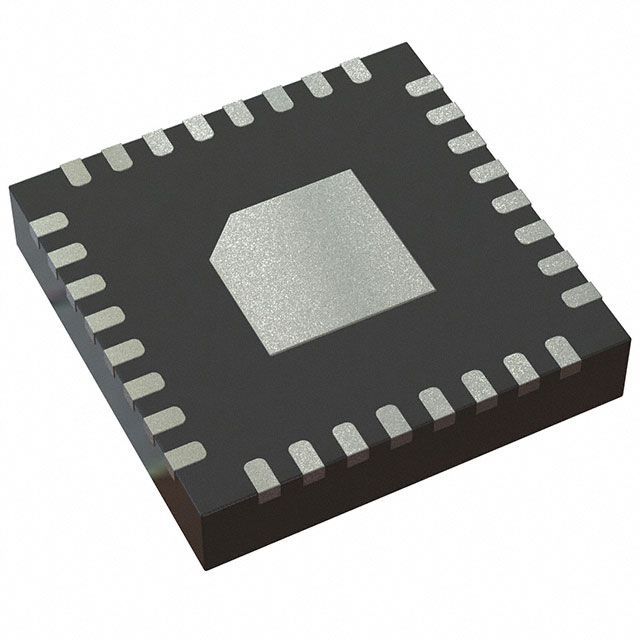

Package / Case: VQFN-32

Number of Outputs: 4 Outputs

Output Current: 150 mA

Input voltage (min): 3 V

Input voltage (max): 48 V

Topology: Boost, SEPIC

Operating frequency: 100 kHz to 2.2 MHz

Output voltage: 48 V

Minimum operating temperature: - 40 C

Maximum operating temperature: + 125 C

Features: PWM Dimming, I2C Control

Development Kit: LP8864EVM

Dimming: PWM

Input Voltage: 3 V to 48 V

Humidity Sensitivity: Yes

Number of Channels: 4 Channel

Output Type: Open Drain

Supply current - max: 104 mA

Applications

Provides backlighting for the following applications:

Automotive infotainment

Automotive instrument clusters

Intelligent Car Mirrors

Horizontal View Display (HUD)
