The MCT8314Z0HRRWR brushless DC (BLDC) motor driver offers a single-chip, no-code sensor trapezoidal commutation device for driving 12V to 24V BLDC motors. The main specifications of this device include:

Motor type - Stepper: Multiphase

Motor type - AC, DC: Brushless DC (BLDC)

Function: Driver - fully integrated, control and power stage

Output configuration: Half bridge (3

Interfaces: PWM, SPI

Technology: Power MOSFET

Step resolution: -

Application: General

Current - Output: 1.5A

Voltage - Power supply: 5V to 35V

Voltage - Load: 5V to 35V

Operating temperature: -40°C to 125°C (TA)

Installation type: Surface mount type

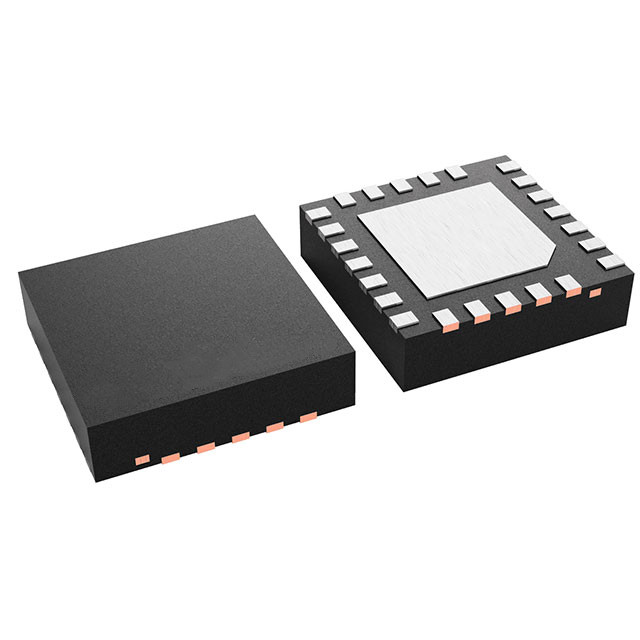

Package/Housing: 24-WQFN (3x3)

This motor driver integrates three 1/2 H Bridges, featuring an absolute maximum capacity of 40V and a low RDS(ON) of 575mΩ, enabling high-power drive capabilities. The MCT8314Z0HRRWR motor driver enables sensor-based trapezoidal control in a fixed-function state machine, eliminating the need for an external microcontroller to drive BLDC motors.

Typical applications

The MCT8314Z0HRRWR is designed for the following fields:

BLDC motor module

Small household appliances

Office automation equipment

Factory automation and robots

HVAC motor
