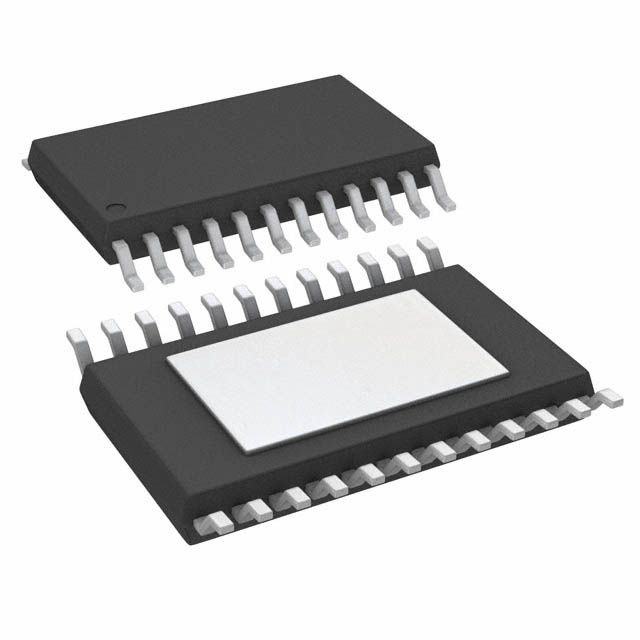

The ALED1262ZTTR is a monolithic 12 output LED driver designed for automotive exterior and interior lighting applications. The ALED1262ZTTR guarantees 19 V output driving capability allowing users to connect several LEDs in series. In the output stage, twelve regulated current sources provide from 6 mA to 60 mA constant current to drive LEDs. The current is programmed by a single external resistor. In the ALED1262ZTTR , LED open error detection is available.

Features

Designed for automotive applications

12 constant current output channels

19 V current generator rated voltage

Output current: from 6 mA to 60 mA

Current programmable by a single external resistor

7-bit PWM local brightness control

Slow turn-on/off time, gradual output delay and dithered clock for EMI reduction

Error detection for open LEDs

Supply voltage: from 5.5 V to 38 V

Thermal shutdown and overtemperature alert

Standalone and bus-driven mode

Custom configuration by OTP with Redundancy and ECC

400 kHz fast I²C interface with selectable extended Hamming encoding

Wired-OR error flag connection

Applications

Automotive rear lights

Automotive interior lighting
