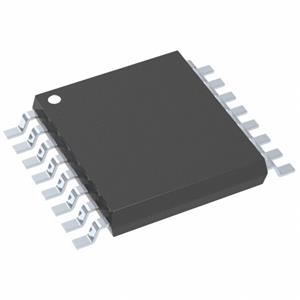

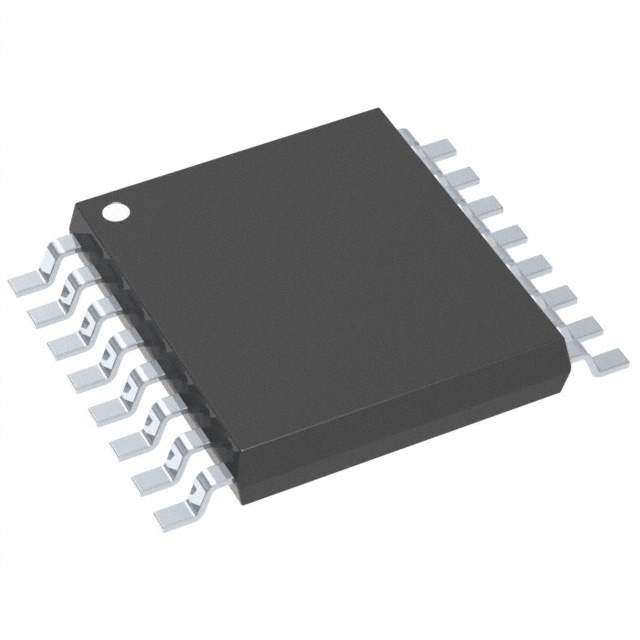

The ALED8102SXTTR is a monolithic, low-voltage, 8-way low-side channel. the ALED8102S guarantees up to 20 V output drive capability, allowing the user to daisy-chain multiple LEDs. at the output stage, eight regulated current sources provide constant current from 5 mA to 100 mA to drive the LEDs. the ALED8102S is equipped with a thermal management feature that protects the device by forcing it to shut down (typically: power down at 170 °C with a 15 °C lag restart). The ALED8102S is equipped with a thermal management feature that protects the device and forces it to shut down (typically: power down at 170 °C and restart with a 15 °C lag). Thermal protection shuts down only the output channels. The operating supply voltage range is 3 V to 5.5 V. Output control is provided by four switching inputs for on/off switching and also for local dimming. In addition, the brightness of all active output LEDs can be adjusted by a global PWM signal on the output enable pin (OE). Depending on the application, the outputs can be connected in parallel or left unconnected when not in use.

All Features

8 constant current output channels controlled by 4 switching inputs

Output enable input for global dimming

Output current: 5 mA to 100 mA

Current programmable via external resistor

Supply voltage: 3 V to 5.5 V

Thermal shutdown

20 V current generator rating

Available in a thermally efficient HTSSOP exposed pad package

ESD protection 2.0 kV HBM, 100 V MM

Applications

- Automotive LED interior and exterior lighting

- Clustering

- LCD Backlighting

- Ambient lighting

- Dome lights

- Rear combination lights
