The ALED7707TR device consists of an automotive-grade (AEC Q100-compliant) monolithic boost converter and six controlled current generators (rows) specifically designed to power the LED arrays used in LCD panel backlighting. The device can manage output voltages up to 36 V (i.e., 10 white LEDs per row).

Product Properties

Type: DC DC Regulator

Topology: Boost

Internal Switch: Yes

Number of Outputs: 6

Voltage - Supply (Min): 4.5V

Voltage - Supply (Max): 36V

Voltage - Output: 36V

Current - Output/Channel: 85mA

Frequency: 250kHz ~ 1MHz

Dimming: PWM

Applications: Automotive, Backlighting

Operating Temperature: -40°C ~ 150°C (TJ)

Mounting Type: Surface Mount

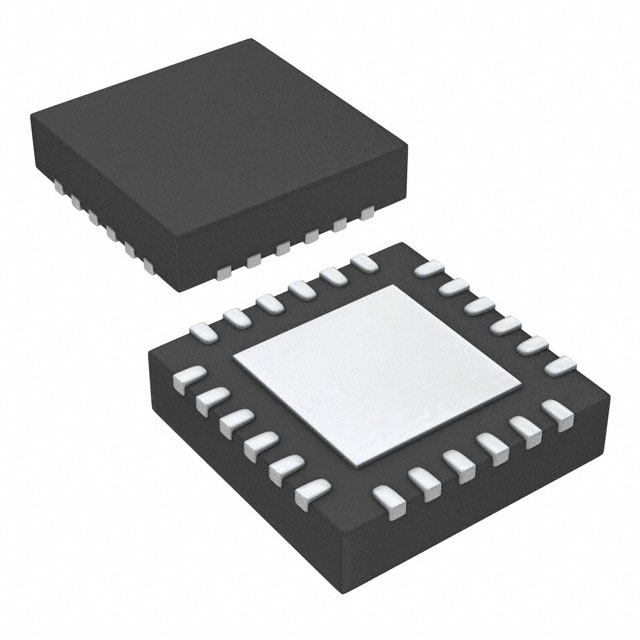

Package/Shell: 24-VQFN Exposed Pad

Supplier Device Package: 24-QFN (5x5)

Applications

Infotainment LCD backlighting

Daytime running lights

Automotive interior/exterior lighting

Instrument panel backlighting
