TRF37A32IRTVR: 400MHz to 1700MHz, Dual-Channel Downconverter Mixer, WQFN-32

Model: TRF37A32IRTVR

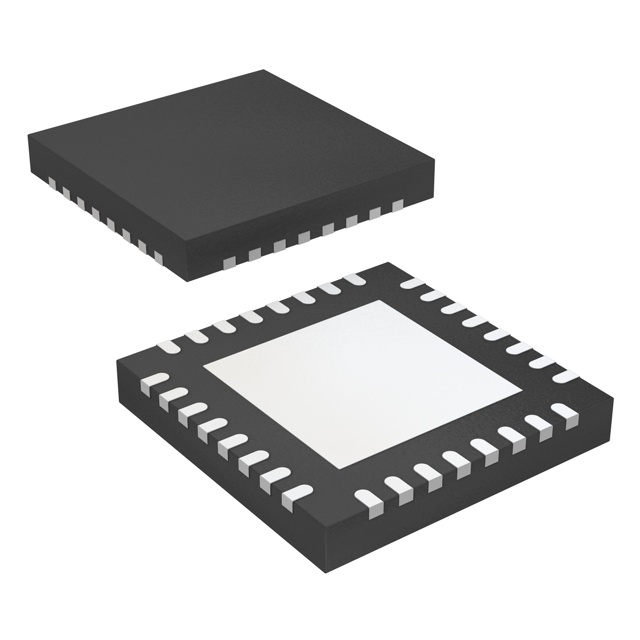

Package: WQFN-32

Type: RF Amplifier – Downconverter Mixer

Overview:

The TRF37A32IRTVR is a broadband dual-channel downconverter mixer with an integrated intermediate frequency amplifier. The device employs an integrated balanced-to-unbalanced transformer for single-ended RF and LO inputs. The TRF37A32IRTVR delivers excellent mixer linearity and noise performance, with good channel isolation for use in a variety of applications. The device features low power consumption and additionally provides a low-power mode option for power-sensitive applications.

TRF37A32IRTVR Product Features:

Wide RF input range: 400MHz to 1700MHz

Gain: 10dB

Noise figure: 9.5dB

Input IP3: 30dBm

500mW power dissipation per channel

Single-ended RF input

Intermediate frequency (IF) range: 30MHz to 600MHz

45dB isolation between channels

Low-power mode option

Independent power-down control

3.3V single supply

No external matching components required

TRF37A32IRTVR Applications:

Wireless infrastructure

WCDMA, TD-SCDMA

LTE, TD-LTE

Multi-carrier GSM (MC-GSM)

Point-to-point microwave backhaul

Software-defined radio (SDR)

Radar receivers

Satellite communications
