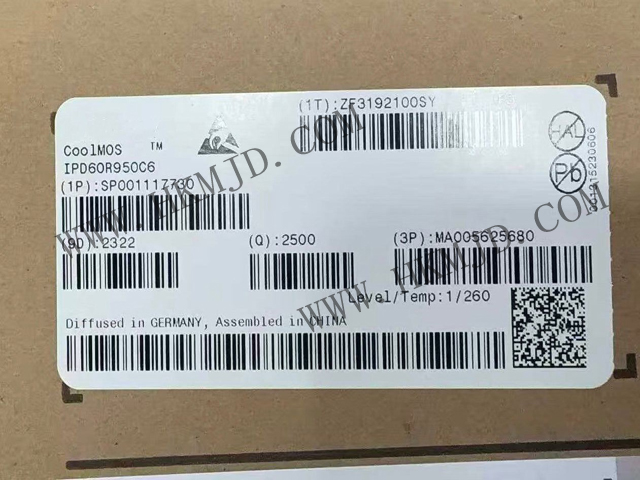

IPD60R950C6 is a 600V N-channel power MOSFET belonging to the CoolMOS™ C6 series. This series combines the advantages of superjunction (SJ) technology to deliver high energy efficiency and reliability. Featuring an extremely low on-resistance (950mΩ) and fast switching characteristics, the IPD60R950C6 is suitable for a wide range of power management applications.

IPD60R950C6 Product Attributes

Manufacturer:    Infineon

Product Type:    MOSFET

Technology:    Si

Mounting Style:    SMD/SMT

Package / Case:    DPAK-3 (TO-252-3)

Transistor Polarity:    N-Channel

Number of Channels:    1 Channel

Vds - Drain-Source Breakdown Voltage:    600 V

Id - Continuous Drain Current:    4.4 A

Rds On - Drain-Source On-Resistance:    950 mOhms

Vgs - Gate-Source Voltage: - 30 V, + 30 V

Vgs th-Threshold Voltage:    3 V

Qg-Gate Charge:    13 nC

Minimum Operating Temperature:    - 55 °C

Maximum Operating Temperature:    + 150 °C

Power Dissipation (Pd):    26 W

Channel Mode:    Enhancement

Brand Name:    CoolMOS

Configuration:    Single

Fall Time:    13 ns

Height:    2.3 mm

Length:    6.5 mm

Product Type:    MOSFETs

Rise time:    8 ns

Series:    CoolMOS C6

Transistor type:    1 N-Channel

Typical turn-off delay time:    60 ns

Typical turn-on delay time:    10 ns
