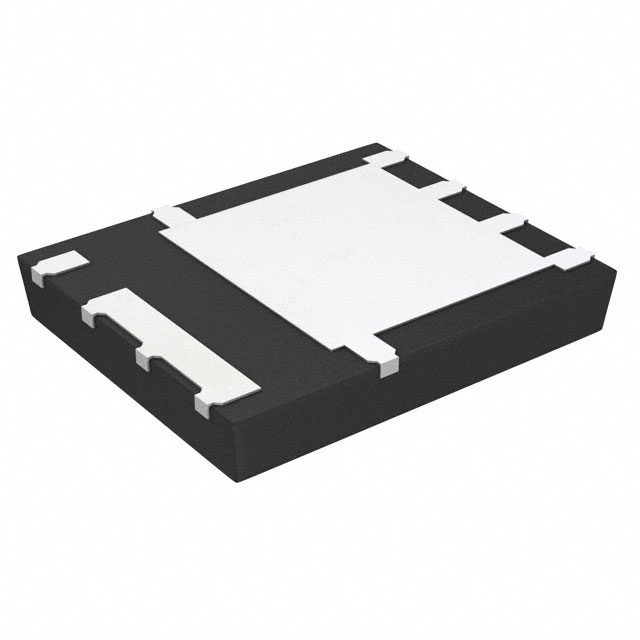

ISC037N12NM6 is a standard-grade 120 V MOSFET transistor in a SuperSO8 package, featuring an on-resistance of 3.7 mOhm. The ISC037N12NM6 forms part of Infineon's OptiMOS™ 6 power MOSFET series.

ISC037N12NM6 Product Attributes:

Series: OptiMOS™ 6

FET Type: N-channel

Technology: MOSFET (Metal Oxide Semiconductor)

Drain-Source Voltage (Vdss): 120 V

Continuous Drain Current at 25°C (Id): 19.2A (Ta), 163A (Tc)

Drive Voltage (Maximum Rds On, Minimum Rds On): 8V, 10V

On-Resistance at Different Id, Vgs (Maximum): 3.7 mΩ @ 50A, 10V

Vgs(th) at different Id (Max): 3.6V @ 111µA

Gate charge (Qg) at different Vgs (Max): 58 nC @ 10 V

Vgs (Max): ±20V

Input capacitance (Ciss) at different Vds (Max): 4300 pF @ 60 V

Power Dissipation (Max): 3W (Ta), 214W (Tc)

Operating Temperature: -55°C to 175°C (TJ)

Mounting Type: Surface Mount

Supplier Device Package: PG-TDSON-8 FL

Package/Case: 8-PowerTDFN

ISC037N12NM6 Product Features:

Characteristics: RDS(on) improved by 58%

FOMg improved by up to 66%

Qrr improved by up to 90%

FOMoss improved by up to 35%

Extremely low on-resistance

Extremely low reverse recovery charge

Excellent gate charge x RDS(on)

High avalanche energy rating

175°C junction temperature rating
