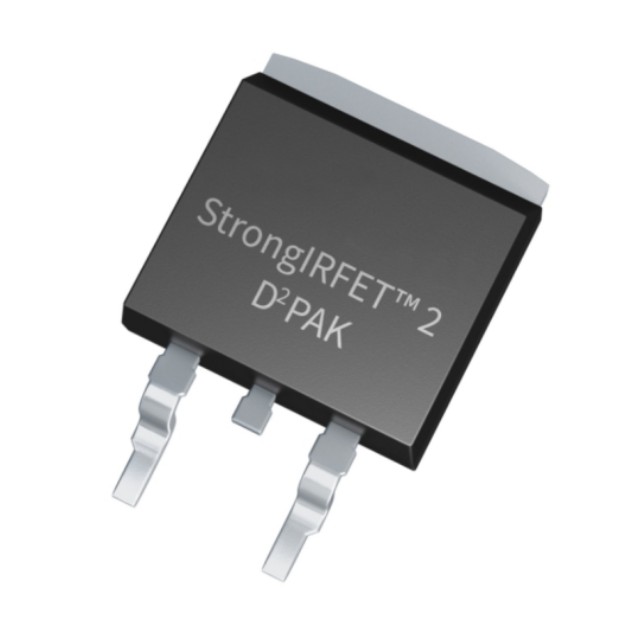

IPB026N10NF2S is a 100V, StrongIRFET™ 2 single N-channel power MOSFET transistor in a D²PAK package. Product details are as follows:

Model: IPB026N10NF2S

Package: PG-TO263-3 (D²PAK)

Type: N-Channel Power MOSFET

Application: Suitable for light electric vehicle solutions

Specifications:

Product Type: MOSFET

Technology: Si

Mounting Style: SMD/SMT

Package / Case:    D2PAK-3 (TO-263-3)

Transistor Polarity:    N-Channel

Number of Channels:    1 Channel

Vds - Drain-Source Breakdown Voltage:    100 V

Id - Continuous Drain Current:    162 A

Rds On - Drain-Source On-Resistance:    2.65 mOhms

Vgs - Gate-Source Voltage:    -20 V, +20 V

Vgs th - Gate-Source Threshold Voltage:    2.2 V

Qg - Gate charge:    103 nC

Minimum operating temperature:    -55 °C

Maximum operating temperature:    +175 °C

Pd - Power dissipation:    250 W

Channel mode:    Enhancement

Fall time:    26 ns

Forward transconductance - Minimum:    104 S

Product Type:    MOSFETs

Rise Time:    65 ns

Typical Off-Time Delay:    47 ns

Typical On-Time Delay:    20 ns

IPB026N10NF2S Product Features:

Outstanding cost-performance ratio

Suitable for high and low switching frequencies

Industry-standard package size

High rated current
