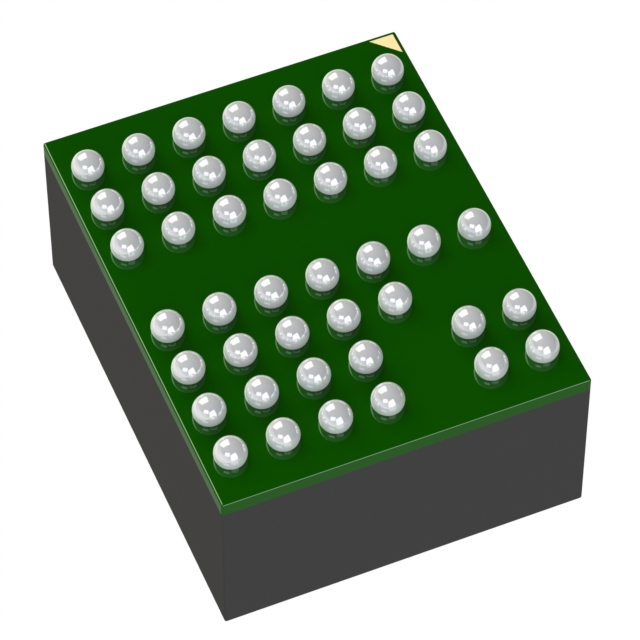

LTM8048MPY: 3.1VIN to 32VIN, Isolated μModule DC/DC Converter, BGA-45

Model: LTM8048MPY

Package: BGA-45

Type: Isolated μModule Converter

Description: Isolated module, DC converter with 2 outputs: 2.5 to 13V, 1.2 to 12V, 440mA, 300mA; 3.1V to 32V input

Overview:

The LTM8048MPY is an isolated flyback μModule DC/DC converter with an LDO post-regulator. The LTM8048MPY has a rated isolation voltage of 725 VDC. The package integrates a switch controller, power switches, transformer, and all supporting components. The LTM8048MPY operates over an input voltage range of 3.1 V to 32 V and supports an output voltage range of 2.5 V to 13 V (set by a single resistor).

LTM8048MPY Specifications:

Product Type: Switching Regulator

Mounting Style: SMD/SMT

Package/Case: BGA-45

Topology: Flyback

Output Voltage: 1.2 V to 13 V

Output Current: 440 mA

Number of Outputs: 2 Outputs

Input Voltage - Minimum: 3.1 V

Input Voltage - Maximum:    32 V

Quiescent Current:    850 uA

Minimum Operating Temperature:    -55 °C

Maximum Operating Temperature:    +125 °C

Input Voltage:    3.1 V to 32 V

Load Regulation:    1.5%, 2 mV

Operating Supply Current:    850 uA
