LTM8058EY: Isolated μModule® DC/DC Converter with LDO Post-Regulator for 3.1VIN to 31VIN

Overview:

The LTM8058EY is a 2kV AC isolated flyback μModule® (micro module) DC/DC converter with an LDO post-regulator. The package integrates a switch controller, power switch, transformer, LDO, and all supporting components. The LTM8058EY operates over an input voltage range of 3.1V to 31V and supports an output voltage range of 2.5V to 13V (set by a single resistor). Additionally, it integrates a linear post-regulator with an adjustable output voltage range of 1.2V to 12V (set by a single resistor).

LTM8058EY Product Attributes:

Series: µModule®

Type: Isolated Module

Number of Outputs: 2

Voltage - Input (Minimum): 3.1V

Voltage - Input (Maximum): 31V

Voltage - Output 1: 2.3 ~ 13V

Voltage - Output 2: 1.2 ~ 12V

Current - Output (Maximum): 440mA, 300mA

Voltage - Isolation: 3 kV

Operating Temperature: -40°C to 125°C

Mounting Type: Surface Mount

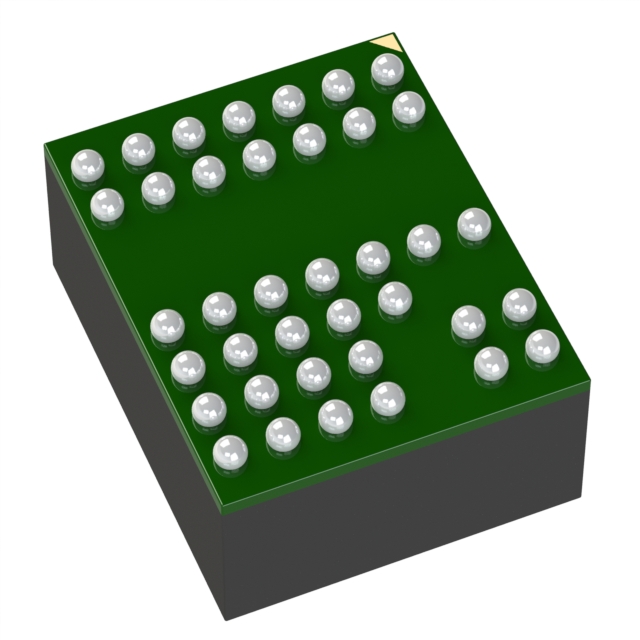

Package/Case: 38-BBGA Module

Supplier Device Package: 38-BGA (11.25x9)

LTM8058EY Product Features:

2 kV AC isolated μModule converter (tested for 3 kV DC)

UL60950 recognition file E464570

Wide input voltage range: 3.1V to 31V

VOUT1 output:

Up to 440mA (VIN = 24V, VOUT1 = 2.5V)

2.5V to 13V output range

VOUT2 low-noise linear post-regulator

Up to 300mA

1.2V to 12V output range

Current-mode control

Programmable soft-start

User-configurable under-voltage lockout

Flat (9mm x 11.25mm x 4.92mm) BGA package
