The LTM8058IY is a 2kV AC isolated flyback μModule® (micro module) DC/DC converter with an LDO post regulator. The package integrates a switch controller, power switch, transformer, LDO, and all supporting components.

Product Details:

Model: LTM8058IY

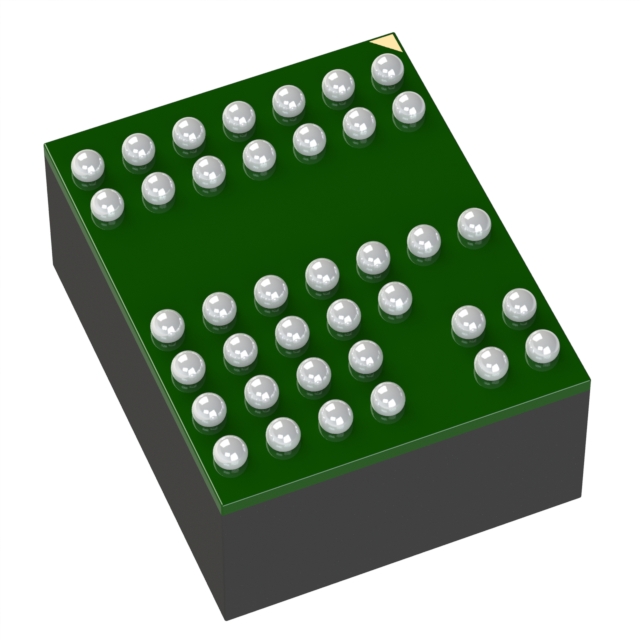

Package: BGA-38

Type: Isolated µModule Converter

The LTM8058IY operates within an input voltage range of 3.1V to 31V and supports an output voltage range of 2.5V to 13V (set by a single resistor). Additionally, it integrates a linear post-regulator with an adjustable output voltage range of 1.2V to 12V (set by a single resistor). A complete design can be achieved using only output and input capacitors. Other components can be used to control soft-start control and bias.

LTM8058IY Specifications:

Mounting Style:    SMD/SMT

Package/Case:    BGA-38

Topology:    Flyback

Output Voltage:    1.2 V to 12 V

Output Current:    440 mA

Number of Outputs:    2 Outputs

Input Voltage - Minimum:    3.1 V

Input Voltage - Maximum:    31 V

Quiescent Current:    850 uA

Switching Frequency:    Adjustable

Minimum Operating Temperature:    -40°C

Maximum Operating Temperature:    +125°C

Input Voltage:    3.1 V to 31 V

Load Regulation:    1.5%, 2 mV

Operating Supply Current:    850 uA

LTM8058IY Applications:

Industrial Sensors

Industrial Switching Power Supplies

Ground Loop Mitigation
