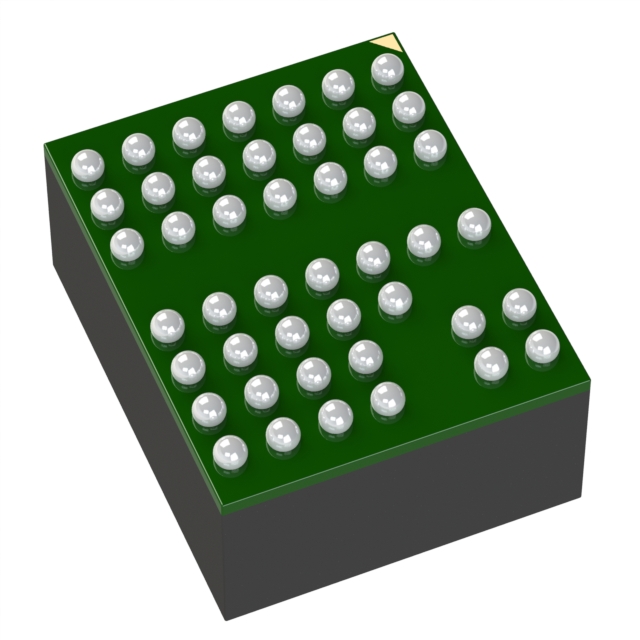

LTM8047IY: Isolated Flyback μModule DC/DC Converter, BGA-45

Overview:

The LTM8047IY is a 3.1VIN to 32VIN isolated μModule DC/DC converter. The LTM8047EY features a rated isolation voltage of 725VDC. The LTM8047IY package integrates a switch controller, power switches, transformer, and all supporting components. The LTM8047IY operates within an input voltage range of 3.1V to 32V and supports an output voltage range of 2.5V to 12V (set by a single resistor). A complete design can be achieved using only output, input, and bypass capacitors. Additional components can be used to control soft-start control and bias.

LTM8047IY Product Attributes:

Mounting Style:    SMD/SMT

Package/Case:    BGA-45

Topology:    Flyback

Output Voltage:    2.5 V to 12 V

Output Current:    440 mA

Number of Outputs:    1 Output

Input Voltage - Minimum:    3.1 V

Input Voltage - Maximum:    32 V

Quiescent Current:    850 uA

Minimum Operating Temperature:    -40 °C

Maximum Operating Temperature:    +125 °C

Input Voltage:    3.1 V to 32 V

Load Regulation:    1.5%

Operating Supply Current:    850 uA

LTM8047IY Product Features:

Complete Switching Mode Power Supply

725 VDC Isolation

Wide Input Voltage Range: 3.1 V to 32 V

Up to 440 mA Output Current (VOUT = 2.5 V)

2.5V to 12V output voltage

Current-mode control

Programmable soft-start

User-configurable under-voltage lockout

Coating compliant with SnPb or RoHS standards

Flat (11.25mm x 9mm x 4.92mm) surface-mount BGA package
