LTM8048EY【ADI】3.1VIN to 32VIN Isolated μModule DC/DC Converter with LDO Post-Regulator

Product Details:

The LTM8048EY is an isolated flyback μModule DC/DC converter with an LDO post-regulator. The LTM8048EY features a rated isolation voltage of 725VDC. The package integrates a switch controller, power switches, transformer, and all supporting components.

The LTM8048EY operates over an input voltage range of 3.1V to 32V and supports an output voltage range of 2.5V to 13V (set by a single resistor). Additionally, it integrates a linear post-regulator with an adjustable output voltage range of 1.2V to 12V (set by a single resistor). A complete design can be achieved using only output, input, and bypass capacitors. Additional components can be used to control soft-start control and bias.

LTM8048EY Product Features:

Complete switch-mode power supply

725VDC isolation

Wide input voltage range: 3.1V to 32V

VOUT1 output:

- Up to 440mA (VOUT1 = 2.5V, 24VIN)

- Output range: 2.5V to 13V

VOUT2 low-noise linear post-regulator:

- Up to 300mA

- Output range: 1.2V to 12V

Current-mode control

Programmable soft-start

User-configurable under-voltage lockout

Coating compliant with SnPb or RoHS standards

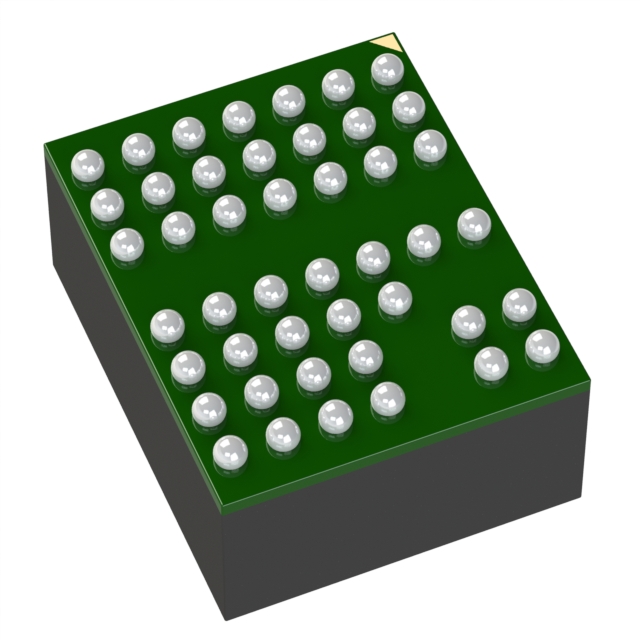

Flat (11.25mm x 9mm x 4.92mm) surface-mount BGA package
