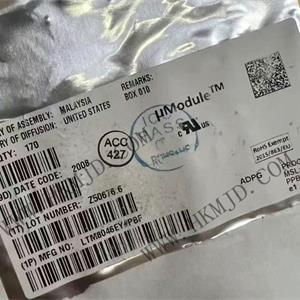

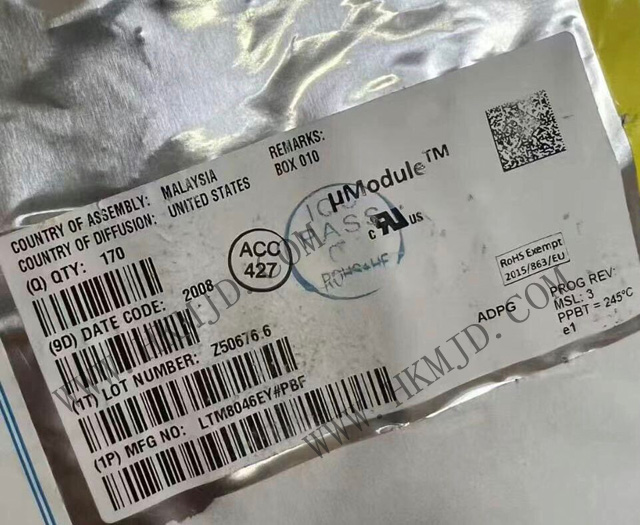

For picture reference, please see the specifications
< >

Commodity Model:LTM8046EY

Trade Name:Isolated µModule Converter

Brand:ADI

Particular Year:20+

Package:BGA-51

Delivery Date:New and Original

Stock: 5900pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ADI
Model
LTM8046EY
Package
BGA-51
Describe
3.1VIN to 31VIN, 2kVAC isolated DC/DC μModule converter

Product Description

The LTM8046EY is an isolated flyback DC/DC μModule® (micro module) converter. The LTM8046EY features a rated isolation of 2kVAC. The package integrates a switch controller, power switches, transformer, and all supporting components. The LTM8046EY operates within an input voltage range of 3.1V to 31V and supports an output voltage range of 1.8V to 12V (set by a single resistor). A complete design can be achieved using only output, input, and bias capacitors. An optional capacitor can be used to set the soft-start period.


The LTM8046EY is housed in a 9mm x 15mm x 4.92mm moulded resin ball grid array (BGA) package, suitable for automated assembly using standard surface mount equipment. The LTM8046EY is available with SnPb (BGA) or RoHS-compliant terminal coatings.


LTM8046EY Features

2kVAC isolated μModule converter (tested to 3kVDC)

UL 60950 certified, file number E464570

Wide input voltage range: 3.1V to 31V

Can provide 5V/550mA output with 24VIN

1.8V to 12V output voltage

Current-mode control

Programmable soft-start

User-configurable under-voltage lockout

SnPb or RoHS-compliant coating

9mm x 15mm x 4.92mm BGA package


LTM8046EY Applications

Industrial sensors

Industrial switches

Ground loop mitigation

Associated Products

Model

Brand

Package

Quantity

Describe

LTM8068IY

ADI

BGA-38

3000

Isolated 3VIN to 40VIN μModule DC/DC converters with LDO rear regulator

LTM8068EY

ADI

BGA-38

3000

Isolated 3VIN to 40VIN μModule DC/DC converters with LDO rear regulator

LTM8067IY

ADI

BGA-38

1000

Isolated 3VIN to 40VIN μModule DC/DC converter

LTM8067EY

ADI

BGA-38

3000

Isolated 3VIN to 40VIN μModule DC/DC converter
