MAX77641AEWV: Ultra-low power PMIC with 3-output SIMO, 150mA LDO, and power sequencer

Overview:

The MAX77641AEWV is a low IQ power solution ideal for applications where size and efficiency are critical. The device integrates a 3-output single inductor multiple output (SIMO) buck/boost regulator, a 150mA LDO, and a 3-channel pull-current driver.

The SIMO operates with an input voltage range of 2.7V to 5.5V. The outputs can be independently programmed within a range of 0.8V to 5.25V, depending on the ordering option. Each output is a buck-boost regulator capable of seamless switching between boost and buck operation. The SIMO supports loads exceeding 300mA (1.8VOUT, 3.7VIN).

MAX77641AEWV Product Features:

Compact, high-efficiency power solution

3-output single-inductor multi-output (SIMO) buck-boost regulator

150mA LDO

3-channel pull-current driver

Flexible power sequencing

GPIO and reset output

3-output SIMO extends battery life

2.7V to 5.5V input voltage range, using a single lithium-ion battery

0.8V to 5.25V output voltage range (Table 1)

Supports loads exceeding 300mA (1.8V OUT, 3.7V IN)

Improves overall system efficiency while reducing size

Ensures voltage regulation without voltage drop, outperforming traditional buck regulators

Interference-free boost/buck operation

Low quiescent current

300nA shutdown current

5.6µA operating current (3 SIMO channels and LDO enabled)

Small size

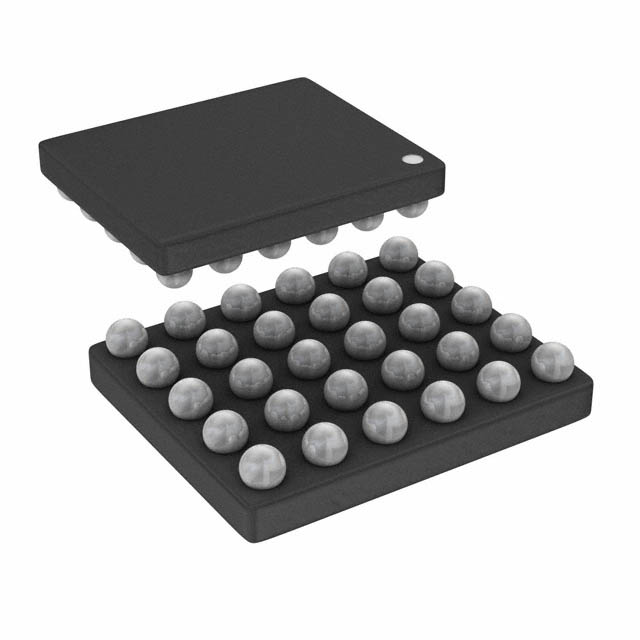

2.75mm x 2.15mm (maximum thickness 0.7mm) WLP package

30 solder balls, 0.2mm ball pitch, 6 x 5 array

16mm² total solution size

MAX77641AEWV Applications:

Action cameras, wearable/handheld cameras

Ear-worn devices: Bluetooth headphones and earbuds

Internet of Things (IoT) devices

Wearable devices: fitness, health, and activity monitors
