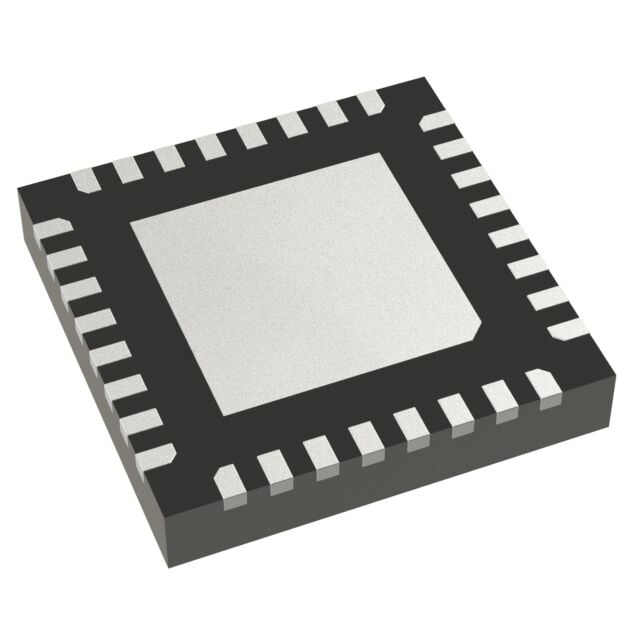

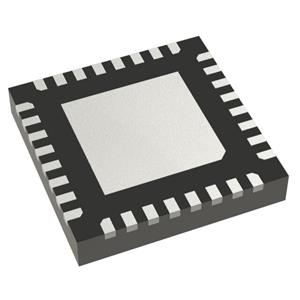

The NCP81418MNTXG is a high-performance fuse designed for 12V hot-swappable applications in servers, data storage, and industrial systems. This device features a 0.65mΩ (extremely low) NMOS FET and an integrated hot-swappable controller, all housed in a compact 5mm × 5mm LQFN32 package.

Feature

Peak output current up to 80A and continuous current up to 50A

The operating voltage range of VIN is 5V to 18VVIN

It can operate up to 30V standby (PowerFet off)

0.65mΩ path resistance

NCP81428 Main device Programmable Overcurrent Protection (OCP)

External capacitor programmable soft start

Soft start current balance between parallel units

It is equipped with a power switch and a hot-swappable controller

Two-wire interface (TWI) communication between the master device and the slave device

±2% IMON accuracy (at 30A and higher)

Parallel operation is used for high-current applications

Overheat shutdown

FAULT#_C and FAULT#_D multi-purpose pins

Soft start current limiting achieves safe working area protection

Protection against excessive soft start time

5mm x 5mm LQFN32 package, 487AA housing

Operating temperature range: -40 °C to +125 °C

The NCP81418MNTXG supports a continuous current of up to 50A and a peak output of up to 80A, making it highly suitable for high-current environments. Other features of NCP81418MNTXG include ±2% IMON accuracy (at 30A), as well as overheat shutdown and soft start current limiting that allow safety to operate within the system's safe operating area (SOA).

Typical applications

Server

Data storage

Base station

Industry
