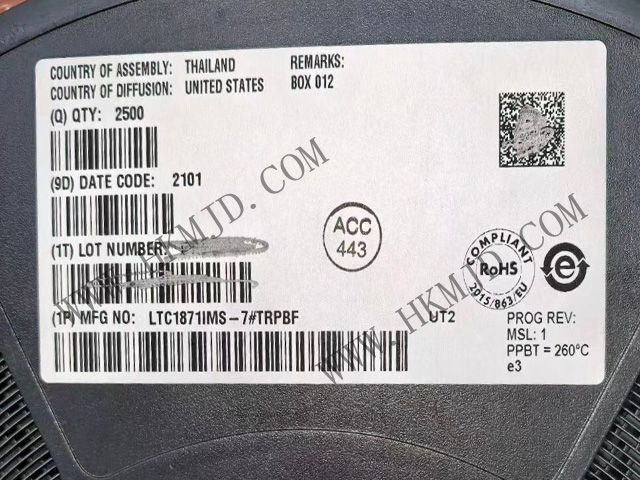

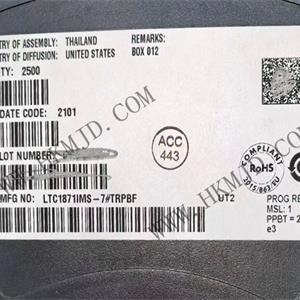

For picture reference, please see the specifications
< >

Commodity Model:LTC1871IMS-7

Trade Name:Switch Controller

Brand:ADI

Particular Year:21+

Package:MSOP-10

Delivery Date:New and Original

Stock: 2500pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ADI
Model
LTC1871IMS-7
Package
MSOP-10
Describe
Switching Controller High Input Voltage, Current Mode Boost, Flyback and SEPIC Controllers

Product Description

The LTC1871IMS-7 is a current-mode, boost, flyback, and SEPIC controller optimised for driving 6V-rated MOSFETs in high-voltage applications. The LTC1871IMS-7 operates equally well in low-power or high-power applications and provides a complete power solution with minimal components. The switching frequency can be set within the range of 50kHz to 1MHz using an external resistor, or synchronised to an external clock via the MODE/SYNC pin. Burst mode operation under light load conditions, a very low minimum operating supply voltage (6V), and a low shutdown quiescent current of 10μA make the LTC1871IMS-7 ideal for battery-powered systems. For applications requiring constant frequency operation, the MODE/SYNC pin can be used to disable burst mode operation. The LTC1871IMS-7 is available in a 10-pin MSOP package.


LTC1871IMS-7 Features

Optimised for high input voltage applications

Wide chip power supply voltage range: 6V to 36V

Internal 7V low dropout regulator optimised for 6V rated voltage MOSFETs

Current mode control provides excellent transient response

High maximum duty cycle (typical value of 92%)

±2% RUN threshold with 100mV hysteresis

±1% internal voltage reference

Micro-power shutdown mode: IQ = 10μA

Operating frequency can be set using an external resistor (50kHz to 1MHz)

Can be synchronised to an external clock with a frequency up to 1.3 x fOSC

User-controlled pulse skipping or Burst Mode® operation

Output overvoltage protection

Can be used in No RSENSE™ (no sense resistor) mode (for VDS < 36V)

Small 10-pin MSOP package


LTC1871IMS-7 Applications

Telecom power supplies

42V automotive systems

24V industrial control

IP phone power supplies
