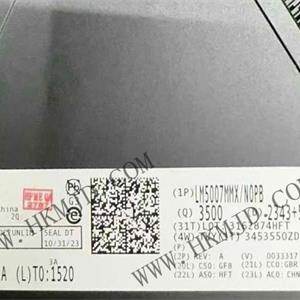

LM5007MMX (TI) Constant-Timing Asynchronous Buck Regulator — 500mA, Buck Switching Converter, VSSOP-8

Model: LM5007MMX

Package: VSSOP-8

Type: Buck Regulator

Overview:

The LM5007MMX is a 0.5A buck switch converter incorporating all the functionality required for a low-cost, high-efficiency step-down regulator. This high-voltage converter features an integrated 80V, 0.7A N-channel buck switch capable of operating over an input voltage range of 9V to 75V. The device implements intelligent current limiting with a forced shutdown time inversely proportional to VOUT. This current limiting scheme ensures short-circuit protection while minimising load current foldback.

LM5007MMX Product Features:

Multi-function synchronous buck DC/DC converter

Operating input voltage range: 9V to 75V

Integrated 80V 0.7A N-channel buck switch

Internal high-voltage VCC regulator

Adjustable output voltage

High-efficiency operation

Adaptive constant on-time control architecture

Ultra-fast transient response

No control loop compensation required

Approximately constant switching frequency

PWM on-time varies inversely with input voltage

High-accuracy 2.5V reference voltage

Low input quiescent current

Inherent protection features enable robust design

Intelligent current limit protection

VCC and gate drive UVLO protection

Thermal shutdown protection with hysteresis

External shutdown control

LM5007MMX Applications:

Non-isolated DC/DC buck regulators

Secondary-side high-voltage post-regulator

48V automotive systems
