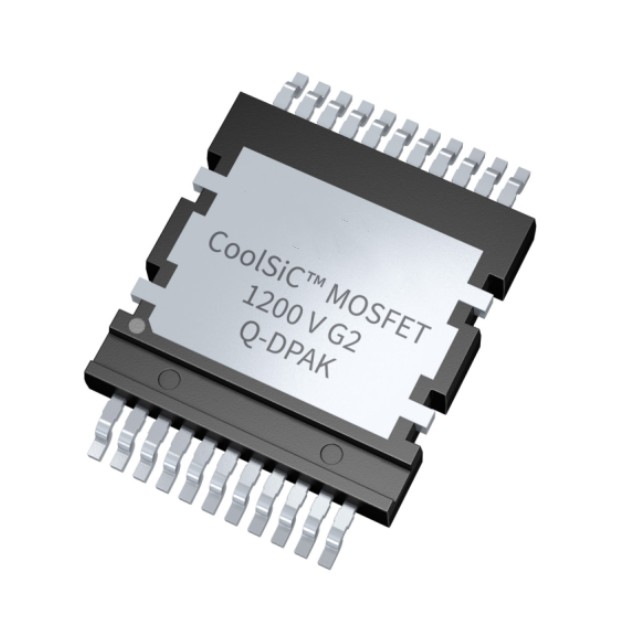

IMCQ120R078M2H CoolSiC™ MOSFET discrete 1200 V, 78 mΩ G2 in a top-side cooled Q-DPAK package specifically designed for wide use in industrial application. The Q-DPAK package solution provides customers with an outstanding thermal performance, easier assembly and reduced system cost. The top-side cooled Q-DPAK single switch is introducing a new era in cooling, energy efficiency, design flexibility and performance.

Features Of IMCQ120R078M2H

VDSS = 1200 V @Tvj = 25°C

IDDC = 22 A @TC = 100°C

RDS(on) = 78.1 mΩ @VGS = 18 V, Tvj = 25°C

Very low switching losses

Overload operation up to Tvj = 200°C

Short circuit withstand time 2 µs

Benchmark gate threshold voltage

Robust against parasitic turn on

Robust body diode for hard commutation

.XT interconnection technology

Benefits Of IMCQ120R078M2H

Outstanding thermal performance

Increases energy efficiency

Higher power density

More compact and easier designs

Lower TCO cost or BOM cost

Applications Of IMCQ120R078M2H

EV charging

Solid-state circuit breaker

Low-voltage drives

Photovoltaic

Uninterruptible power supplies (UPS)
