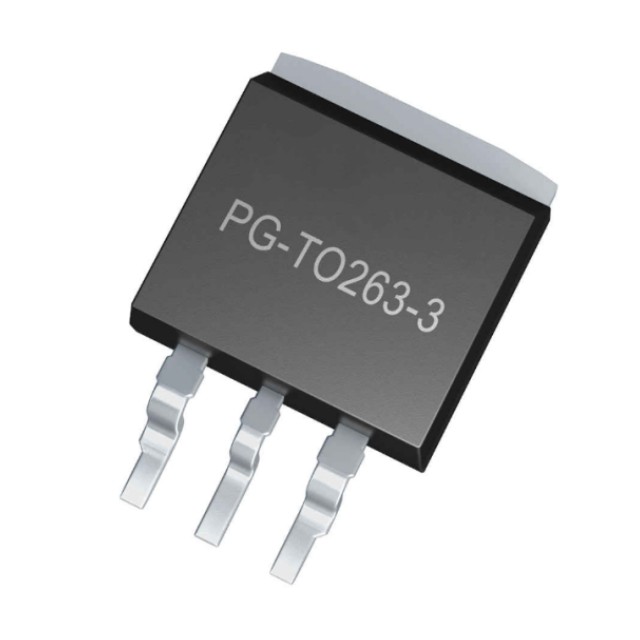

IPB120N06S4-03: 60V, OptiMOS™ -T2 Automotive MOSFET Transistor, PG-TO263-3

IPB120N06S4-03 Specifications:

Product Type: MOSFET

Technology: Si

Mounting Style: SMD/SMT

Package/Case:    D2PAK-3 (TO-263-3)

Transistor Polarity:    N-Channel

Number of Channels:    1 Channel

Vds - Drain-Source Breakdown Voltage:    60 V

Id - Continuous Drain Current:    120 A

Rds On - Drain-Source On-Resistance:    2.3 mOhms

Vgs - Gate-Source Voltage:    -20 V, +20 V

Vgs th-Gate-Source Threshold Voltage:    2 V

Qg-Gate Charge:    160 nC

Minimum Operating Temperature:    -55 °C

Maximum Operating Temperature:    +175 °C

Power Dissipation (Pd):    167 W

Channel Mode:    Enhancement

Series:    OptiMOS-T2

Transistor Type:    1 N-Channel

Typical Turn-off Delay Time:    80 ns

Typical Turn-on Delay Time:    40 ns

IPB120N06S4-03 Product Features:

N-Channel - Enhancement Mode

Compliant with automotive AEC Q101 standard

MSL1 with maximum reflow temperature up to 260°C peak

Operating temperature up to 175°C

100% Avalanche tested

PPAP-compliant device
