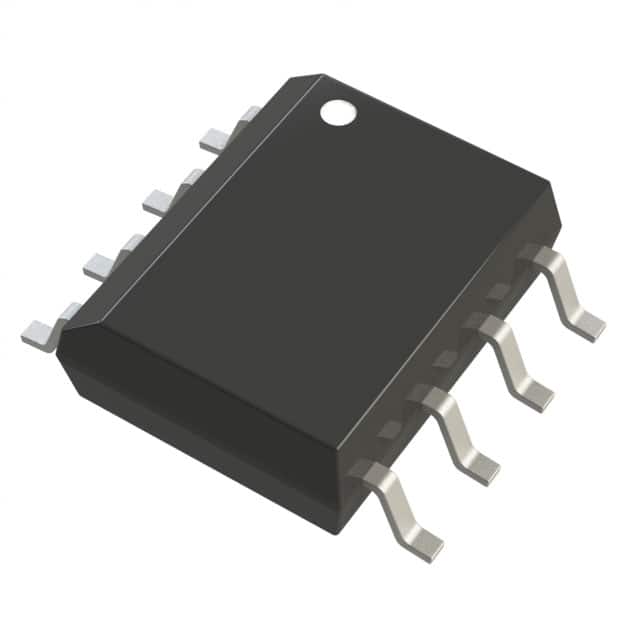

Commodity Model:LT1999HS8-20

Trade Name:Current Sense Amplifiers

Brand:ADI

Particular Year:25+

Package:SOIC-8

Delivery Date:New and original

Stock: 3000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ADI
Model
LT1999HS8-20
Package
SOIC-8
Describe
High-voltage, bidirectional current detection amplifier

Product Description

The LT1999HS8-20 is a high-speed and precise current detection amplifier, specifically designed for monitoring bidirectional current within a wide common-mode range. The LT1999HS8-20 offers three gain options: 10V/V, 20V/V and 50V/V. It has the following technical parameters:

Amplifier type: Current detection

Number of circuits: 1

Output type: -

Slew rate: 3V/µs

-3 dB bandwidth: 2 MHz

Current - Input bias: 137.5 µA

Voltage - Input compensation: 500 µV

Current - Power supply: 5.8mA

Voltage - span (minimum value) : 4.5V

Voltage - span (maximum value) : 5.5V

Operating temperature: -40°C to 125°C

Installation type: Surface mount type

Packaging/Housing: 8-SOIC


The LT1999HS8-20 detects current through an external resistive splitter and generates an output voltage that can indicate the value and direction of the detected current. The output voltage takes the intermediate voltage between the power supply voltage and ground as the reference potential, or an external voltage can also be used to set the reference level. The LT1999HS8-20 features a 2MHz bandwidth and a common-mode input range of -5 V to 80V, making it suitable for monitoring the current in H-bridge motor controllers, switching power supplies, solenoid current, and battery charging current (from full charge to depletion).


Application scenarios

High-end or low-end current detection

H-bridge motor control

Solenoid current detection

High-voltage data acquisition

PWM control loop

Fuse/MOSFET monitoring


Associated Products

Model

Brand

Package

Quantity

Describe

INA193AIDBVR

TI

SOT-23-5

9000

-16 to 80V, 500kHz current sense amplifier

INA750BIREMR

TI

VQFN-14

2000

110V 35A integrated-shunt high-precision current-sense amplifier with enhanced PWM rejection

INA230AIRGTR

TI

VQFN-16

60000

36V, 16-bit, I²C output current, voltage and power monitor with alarm function

AD8412ABRMZ

ADI

MSOP-8

3000

A 1.8MHz high-bandwidth current-aware amplifier with PWM suppression and 10V/V gain

LT6108IDCB-1

ADI

DFN-8

5000

High-end current detection amplifier with reference and comparator

MAX40204ANA

Maxim

WLP-8

2000

Current Sense Amplifier 1 Circuit Single-Ended 8-WLP (1.47x0.85)

AD8410AWBRMZ-10

ADI

MSOP-10

2000

-2 V to 70 V wide input voltage range, 2.2 MHz high bandwidth, current sense amplifier with PWM rejection and 20 V/V gain

AD8411AWBRMZ-10

ADI

MSOP-10

2000

-2V to 70V Wide Input Voltage Range, 2.7MHz High Bandwidth, Current Sense Amplifier with PWM Suppression and 50 V/V Gain

LTC2946IMS-1

ADI

MSOP-16

2000

Wide Range I2C Power, Charge and Energy Monitor

LTC2946HMS-1

ADI

MSOP-16

2000

Wide Range I2C Power, Charge and Energy Monitor
