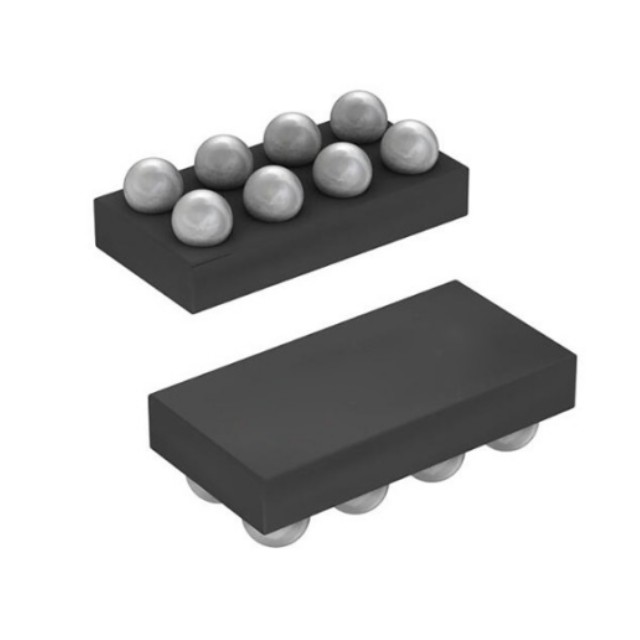

Commodity Model:MAX40204ANA

Trade Name:Current Sense Amplifiers

Brand:Maxim

Particular Year:25+

Package:WLP-8

Delivery Date:New and Original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Maxim
Model
MAX40204ANA
Package
WLP-8
Describe
Current Sense Amplifier 1 Circuit Single-Ended 8-WLP (1.47x0.85)

Product Description

The MAX40204ANA is a high-precision, bi-directional, high-side current-sense amplifier (CSA) with a wide input common-mode range of -0.1V (ground detection) to 36V.


The device's ultra-low 2μV input offset voltage allows the use of small sense resistors to reduce power consumption, while ultra-low gain error of 0.05% ensures measurement accuracy.


The MAX40204ANA offers two gain options using a logic level input (GAIN), providing the flexibility to change gain on-the-fly. The on-the-fly gain adjustment feature enables the system to improve accuracy when measuring currents well below the set full-scale level. In addition, the MAX40204ANA supports unidirectional and bidirectional current sensing while applying an external voltage to the reference voltage input (REF).


The MAX40204ANA is powered by a single supply over the 1.7V to 5.5V range and consumes only 21μA. The MAX40204ANA has a low operating supply current and 70nA (typical) shutdown current, which contributes to long battery life and makes it ideal for portable and battery-powered devices.


The MAX40204ANA is available in a small 8-pin, 0.35mm pitch WLP (1.468mm x 0.848mm) package and is rated over the -40°C to +125°C extended temperature range.


MAX40204ANA Product Features

Wide input common-mode range: -0.1V to 36V

Ultra-low input offset voltage: 2μV

Instant gain setting input

Bidirectional/unidirectional current sense

20nA (max) input bias current

Ultra-low input distortion temperature coefficient: 50nV/°C

Gain error: 0.05 per cent

Supply current: 21µA

Shutdown current: 70nA (typical)

1.7V to 5.5V single supply operating range

Space-saving 8-pin WLP package


MAX40204ANA Product Applications

Base stations

Current sensing in power management systems

Medical instruments

Notebook computers

Portable and battery-powered systems

Smartphones and tablets

Associated Products

Model

Brand

Package

Quantity

Describe

AD8412ABRMZ

ADI

MSOP-8

3000

A 1.8MHz high-bandwidth current-aware amplifier with PWM suppression and 10V/V gain

LT6108IDCB-1

ADI

DFN-8

5000

High-end current detection amplifier with reference and comparator

AD8410AWBRMZ-10

ADI

MSOP-10

2000

-2 V to 70 V wide input voltage range, 2.2 MHz high bandwidth, current sense amplifier with PWM rejection and 20 V/V gain

AD8411AWBRMZ-10

ADI

MSOP-10

2000

-2V to 70V Wide Input Voltage Range, 2.7MHz High Bandwidth, Current Sense Amplifier with PWM Suppression and 50 V/V Gain

LTC2946IMS-1

ADI

MSOP-16

2000

Wide Range I2C Power, Charge and Energy Monitor

LTC2946HMS-1

ADI

MSOP-16

2000

Wide Range I2C Power, Charge and Energy Monitor

MAX4376TAUK

Maxim

SOT23-5

23000

Industry's first SOT23 high-side current-sense amplifier with buffered outputs

INA2181A1IDGSR

TI

VSSOP-10

16800

26V, dual channel, bi-directional, 350kHz current sense amplifier

LT6105IMS8

ADI

MSOP-8

5000

Precision, Extended Input Range Current Sense Amplifier

INA293B1QDBVRQ1

TI

SOT-23-5

3000

AEC-Q100 Compliant -4V to 110V, 1.3MHz Ultra-Precision Current Sense Amplifier
