Trade Name:Current Sense Amplifiers
Brand:ADI
Particular Year:25+
Package:MSOP-8
Delivery Date:New and original
Stock: 3000pcs

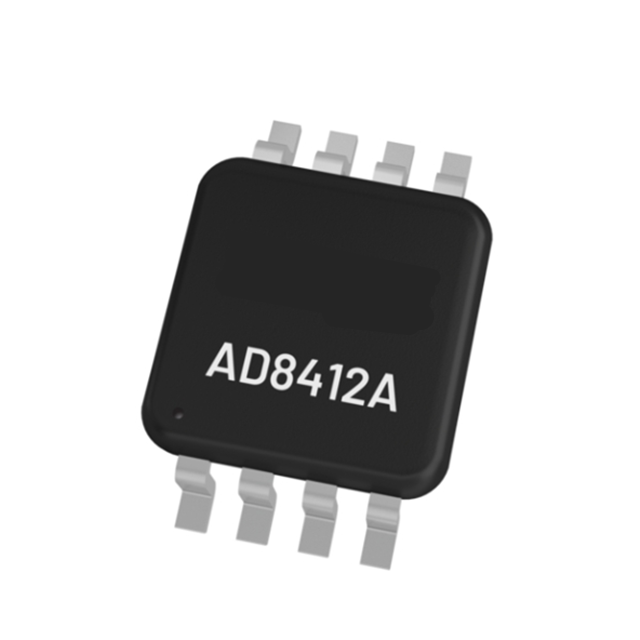

The AD8412ABRMZ is a high-voltage, high-bandwidth current detection amplifier. The initial gain of this device is 10V/V, the bandwidth is 1.8MHz, and the maximum gain error is ±0.11% throughout the entire temperature range. The buffered output voltage can be directly connected to any typical converter. The AD8412ABRMZ has a minimum DC common-mode rejection ratio (CMRR) of 110dB within the range of -2V to +50V. The AD8412ABRMZ is used for bidirectional current measurement of shunt resistors in various industrial and automotive applications.
Its main characteristics are:
1.8MHz small signal, -3 dB bandwidth
Fine-tuning kernel within Package (DigiTrim™)
Accuracy without using chopping and/or automatic zero adjustment
The offset drift is ±0.30 μV/°C (typical value)
The maximum voltage offset across the entire temperature range is ±200 μV
Typical value of DC CMRR: 131 decibels
The typical value of AC CMRR at 50kHz: 97 decibels
Wide common-mode input voltage range
From -2 V to +50 V, continuous operation
Continuous survival capability from -20V to +85V
Initial gain: 10 V/V
Wide operating temperature range: -40 °C to +125°C
Bidirectional operation
Power supply operating range: 2.9V to 5.5V
It adopts an 8-pin MSOP package
Application scenarios
The AD8412ABRMZ amplifier is suitable for applications that require high-precision current detection, especially in 48V and 12V DC-DC systems. Its high bandwidth and low gain error make it excel in situations where high stability and accuracy are required .
