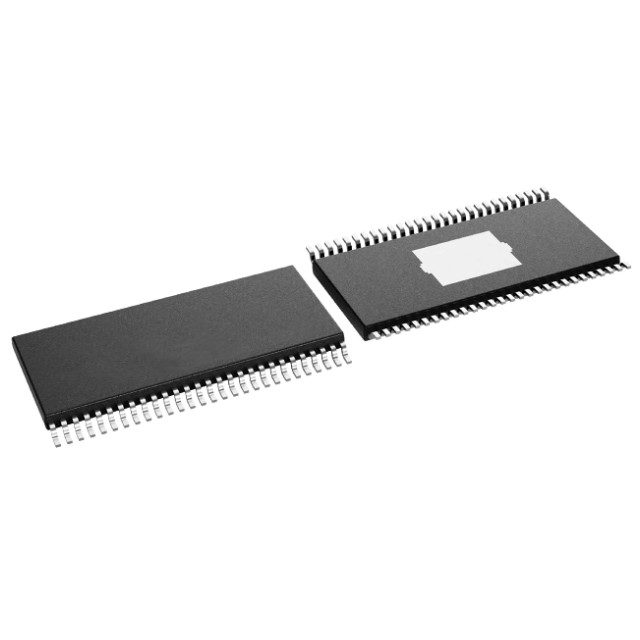

The TLC69628QDCARQ1 is an LED driver with 48 constant current absorber channels that provide up to 16 bits of independent pixel-level LED PWM control. In addition, an extra 7-point correction (DC) is implemented on each channel to control the peak current. Each device shares the data stream through the Serial Peripheral Interface (SPI), which supports the connection of up to 511 devices. This interface is compatible with the LED driver software in the same group and can be applied to different application scenarios based on the LED current and the total number of leds.

The TLC69628QDCARQ1 device complies with the AEC-Q100 standard, with an operating temperature range covering -40 °C to 125°C (Grade 1), and supports automotive-grade reliability requirements.

Main specifications

Type: Linear

Topology: Constant current

Internal switch: None

Output number: 48

Voltage - Power supply (minimum) : 3V

Voltage - Power supply (maximum) : 5.5V

Voltage - Output: 16V

Current - Output/Channel: 60mA

Frequency: 33MHz

Dimming: Analog, PWM

Application: -

Operating temperature: -40°C to 125°C (TA)

Grade: Automotive grade

Qualification: AEC-Q100

Installation type: Surface mount type

Device packaging: 56-HTSSOP

Target application

The TLC69628QDCARQ1 driver is suitable for in-vehicle display devices that require high brightness, low power consumption and fault diagnosis capabilities, such as central information displays and instrument group displays.
