Trade Name:Digital To Analog Converter (DAC)
Brand:TI
Particular Year:25+
Package:VQFN-64
Delivery Date:New and Original
Stock: 5000pcs

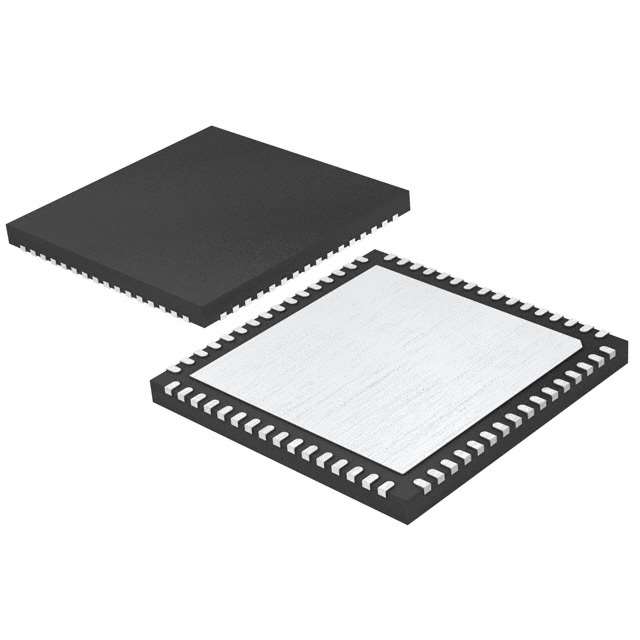

DAC3161IRGCR: 12-bit, 500MSPS Digital-to-Analog Converter (DAC), VQFN-64
Model No.: DAC3161IRGCR
Package: VQFN-64
Type: Digital-to-Analog Converter (DAC)
Overview: The DAC3161IRGCR is a single channel, The DAC3161IRGCR is a single-channel, 500MSPS, 12-bit digital-to-analog converter (DAC). The DAC3161IRGCR is available in a VQFN-64 package and is rated for operation over the -40°C to 85°C industrial temperature range.
DAC3161IRGCR Product Features:
Single-channel
Resolution: 12-bit
Maximum sample rate: 500MSPS
Pin-compatible family
Input interfaces:
Parallel Low-Voltage Differential Signaling (LVDS) inputs
Single- or Dual-DDR Data Clock
Internal First-In-First-Out (FIFO)
Chip-to-chip Synchronisation
Power Dissipation: 375mW
Spectral Performance at 20MHz IF
SNR: 72dBFS
SFDR: 77dBc
Current-source digital-to-analog converter (DAC)
Compliance range: -0.5V to +1V
Package: 64-pin VQFN (9mm × 9mm)
