Trade Name:Digital to Analog Converters (DAC)
Brand:ADI
Particular Year:25+

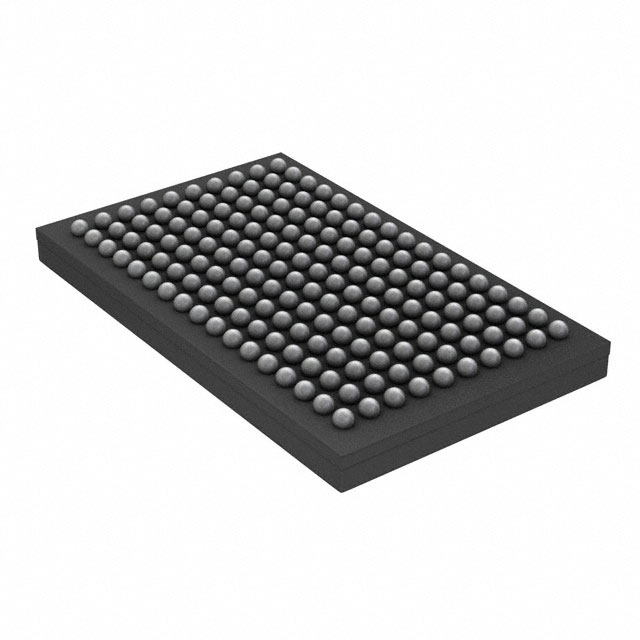

Package:BGA-170
Delivery Date:New and original
Stock: 2000pcs
The LTC2000ACY-16 is a single-channel, 16-bit digital-to-analog converter (DAC) with a sampling rate of up to 2.7Gsps and outstanding spectral purity. The following are its main specifications:
Resolution: 16 bits
Sampling ratio: 2.7 GS/s
Number of channels: 1 Channel
Stabilization time: 2.2 ns
Output type: Current
Interface types: LVDS, SPI
Analog power supply voltage: 1.86V, 3.3V
Digital power supply voltage: 1.86V, 3.3V
Minimum operating temperature: 0 ° C
Maximum operating temperature: + 70 ° C
Installation style: SMD/SMT
Packaging/Cabinet: BGA-170
A serial peripheral interface (SPI) port provides configuration and readback of internal registers. The LTC2000ACY-16 operates on 1.86V and 3.3V power supplies and has a power consumption of 2.41W at a sampling rate of 2.7Gsps.
Application field
Broadband communication system
Cable Data Service Interface Specification Cable Modem Terminal System (DOCSIS CMTS)
Direct RF synthesis
Radar
Instrument
Automatic testing equipment
