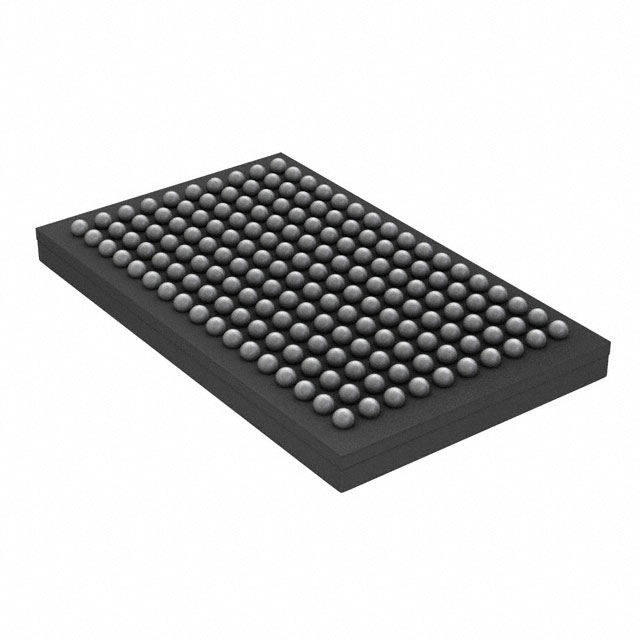

For picture reference, please see the specifications
< >

Commodity Model:LTC2000ACY-14

Trade Name:Digital to Analog Converters (DAC)

Brand:ADI

Particular Year:25+

Package:BGA-170

Delivery Date:New and original

Stock: 2500pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ADI
Model
LTC2000ACY-14
Package
BGA-170
Describe
Single-channel, 2.7Gsps, 14-bit digital-to-analog converter (DAC)

Product Description

The LTC2000ACY-14 is a 14-bit high-speed digital-to-analog converter launched by Analog Devices (ADI), supporting a 2.7Gsps sampling rate and featuring high dynamic range and low phase noise characteristics. The following are its core features:

14-bit resolution

It has 80dBc SFDR at 50MHz fOUT

It has a SFDR of >68dBc in the range from DC to 1080MHz fOUT

Compatible with 40mA nominal full scale, ±1V output

Adjustable full-scale current range from 10mA to 60mA

Single or dual-port DDR LVDS and DHSTL interfaces

Low latency (7.5 cycles for a single port and 11 cycles for two ports)

It has a two-tone intermodulation distortion (IMD) of >78dBc in the range of DC to 1000MHz fOUT.

It has an additional phase noise of -156 DBC /Hz at a 1MHz offset frequency for 65MHz fOUT

170-pin (9mm x 15mm) BGA package


Application scenarios

The LTC2000ACY-14 is widely used in broadband communication, radar, instrumentation, test equipment and cable modem terminal systems (DOCSIS CMTS), and can achieve high-frequency direct RF synthesis. ‌
