The AD5726YRWZ is a four-channel, 12-bit, serial input, voltage-output digital-to-analog converter (DAC) manufactured using ADI's iCMOS® process technology, ensuring monotonicity with a maximum integrated nonlinearity (INL) error of ±1 LSB.

Key features

Working voltage: + 5V to ± 15V

Unipolar or bipolar operation

Integral nonlinearity (INL) error: ±1 LSB (maximum value);

Differential nonlinearity (DNL) error: ±1 LSB (maximum value

Ensure monotonicity within the working temperature range

Double-buffered input

Update simultaneously via LDAC

The asynchronous CLR is reset to zero level or intermediate level

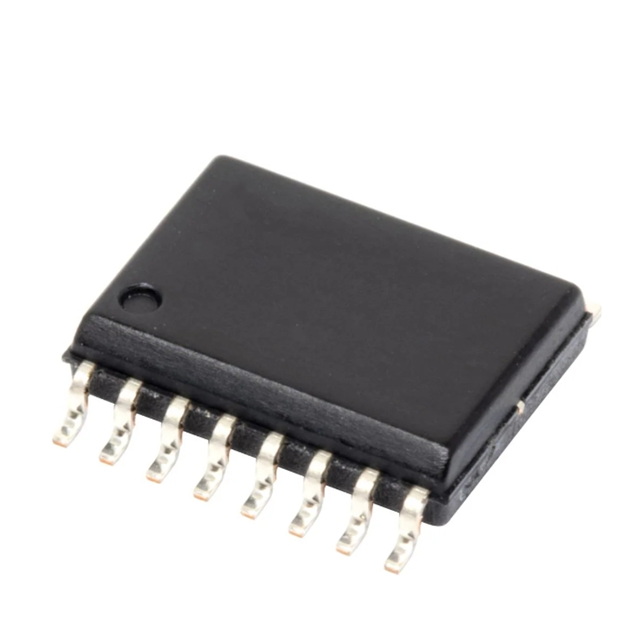

The AD5726YRWZ adopts a serial interface, capable of operating at a maximum clock rate of 30 MHz, and is compatible with DSP and microcontroller interface standards. By using the asynchronous CLR function, all DAC registers can be reset to the zero level or intermediate level output that the user can select. This device is packaged in a 16-pin SOIC and operates within a temperature range of -40 °C to +125°C.

Application field

- Industrial automation

- Closed-loop servo control, process control

- Automobile testing and measurement

- Programmable logic controller
