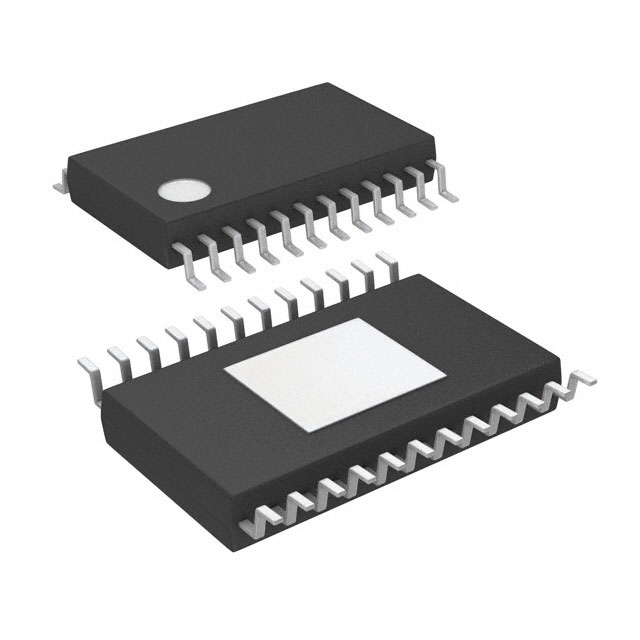

The AD5724AREZ is a four-channel, 12-bit serial input voltage output digital-to-analog converter (DAC) in a TSSOP-24 package, with an operating temperature range of -40°C to +85°C. The following are its core features:

A complete four-channel, 12-bit digital-to-analog converter (DAC)

It is powered by a single power supply or dual power supply

Software programmable output range

+ 5V, + 10V, + 10.8V, ± 5V, ± 10V, ± 10.8V

Integral nonlinearity (INL) error: ±16 LSB (maximum value); Differential nonlinearity (DNL) error: ±1 LSB (maximum value

Total non-adjustment error (TUE) : 0.1% FSR (maximum value)

Establishment time: 10 μs (maximum value)

Integrated reference voltage buffer

The AD5724AREZ adopts a serial interface, can operate at a maximum clock rate of 30 MHz, and is compatible with DSP and microcontroller interface standards. With dual buffering, the AD5724AREZ can be updated simultaneously. For bipolar output, the input encoding method is user-selectable binary complement or offset binary (depending on the state of the BIN/2sComp pin); For unipolar output, the input encoding method is standard binary. By using the asynchronous zeroing function, all DAC registers can be zeroed to a user-selectable zero level or medium-range output.

Application field

Industrial automation

Closed-loop servo control, process control

Automobile testing and measurement

Programmable logic controller
