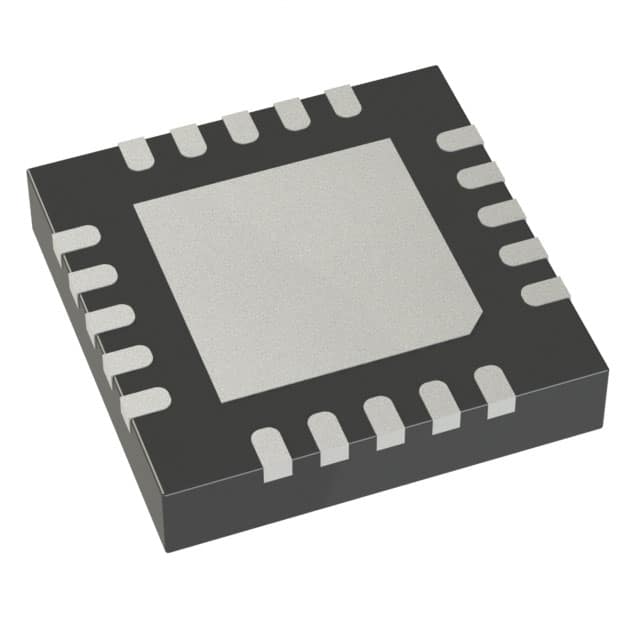

For picture reference, please see the specifications
< >

Commodity Model:LTC3109EUF

Trade Name:Professional Power Management (PMIC)

Brand:ADI

Particular Year:25+

Package:QFN-20

Delivery Date:New and original

Stock: 3000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ADI
Model
LTC3109EUF
Package
QFN-20
Describe
Professional Power Management (PMIC) IC BOOST CONVERTER PMU 20QFN

Product Description

The LTC3109EUF is a highly integrated DC/DC converter, which is ideal for collecting the residual power from extremely low input voltage power sources such as TEG (thermoelectric generator) and thermopyls. Its unique and proprietary automatic polarity topology enables the device to operate normally with an input voltage as low as 30mV, regardless of polarity.


The LTC3109EUF adopts two compact boost converters and external energy storage components, providing a complete power management solution for wireless detection and data acquisition applications. Its core features include:

It can operate under an input voltage as low as ±30mV

The temperature difference between the two ends of the TEG required for energy collection is less than ±1ºC

Proprietary automatic polarity architecture

A complete energy harvesting power management system

Optional Vouts: 2.35V, 3.3V, 4.1V or 5V

2.2V, 5mA LDO

The output of logical control

It has the ability to store energy to provide the power needed for operation during power outages

Good power supply indicator

Adopt a compact boost converter

Small form factor, 20-pin (4mm x 4mm) QFN package or 20-pin SSOP package


In addition, the LTC3109EUF is also applicable to the following application scenarios:

Power supply for remote sensors and radio equipment

HVAC system

Automatic measurement

Building automation

Predictive maintenance

Industrial wireless detection
