RAA270005KFP is a power management IC (PMIC) suitable for the RH850 automotive microcontroller series. The RAA270005KFP incorporates a boost DC-DC converter with an external MOSFET, a buck DC-DC converter serving as a pre-regulator, two low-dropout linear regulators (Ldos), and two linear trackers. The switching frequencies of the boost DC-DC converter and the buck DC-DC converter are 420kHz and 2.1MHz respectively. It simultaneously realizes multiple monitoring and diagnostic functions such as overvoltage and undervoltage detection of the voltage stabilizer and watchdog of the external microcontroller.

The input voltage of RAA270005KFP, the output of all regulators, and the internal analog voltage corresponding to the temperature can all be monitored through the ADC in the external microcontroller. Since the RAA270005KFP includes a power-on/power-off sequence controller, users can reduce the external components used to control the power-on/power-off sequence of the target microcontroller. The RAA270005KFP can also control the external backup power supply of the microcontroller.

Core features

Power supply for Renesas' RH850/P1x (built-in MCU core voltage regulator), load surge robustness

Input voltage range: 6.6 to 18.5V, to perform the specified characteristics.

5.4V~ : Continuous operation without low-voltage detection

3.8V~ : If a boost DC-DC converter is not used, continuous operation will reduce the output voltage

Dc-dc converter

Boost: 6.0V/250mA (Input voltage: 2.2V~)

Voltage reduction: 6.1V/600mA

Linear regulator

Output voltage: 3.3V/10mA

Output voltage: 5.0V/350mA, with reverse protection

Two linear trackers: capability of 100mA, with reverse protection

Automatic power sequencing

External backup power supply control

Monitor the clock

Analog multiplexer

Interrupt request

Thermal shutdown

Reset generator

Control of external devices

Monitor the core voltage in the MCU.

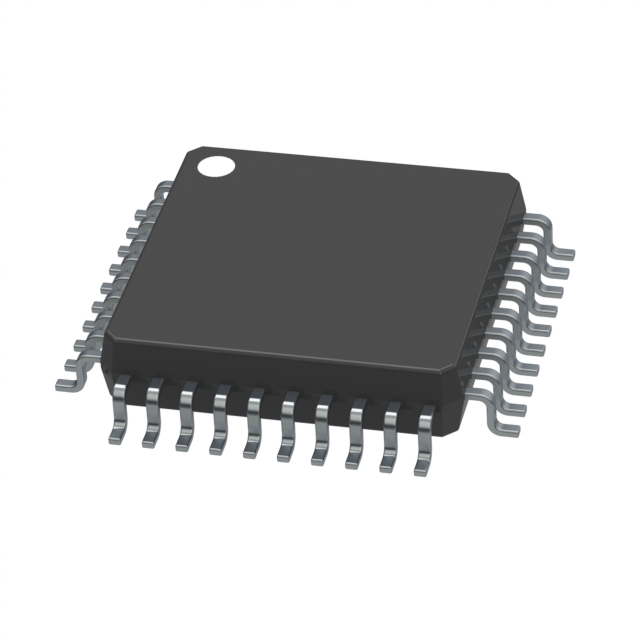

Exposed chip pad, HLQFP package, 40-pin 9mm x 9mm

Typical applications

The RAA270005KFP is suitable for high-reliability scenarios such as automotive battery management systems (BMS), electronic power steering systems, and remote sensing systems with CAN/LIN communication.
