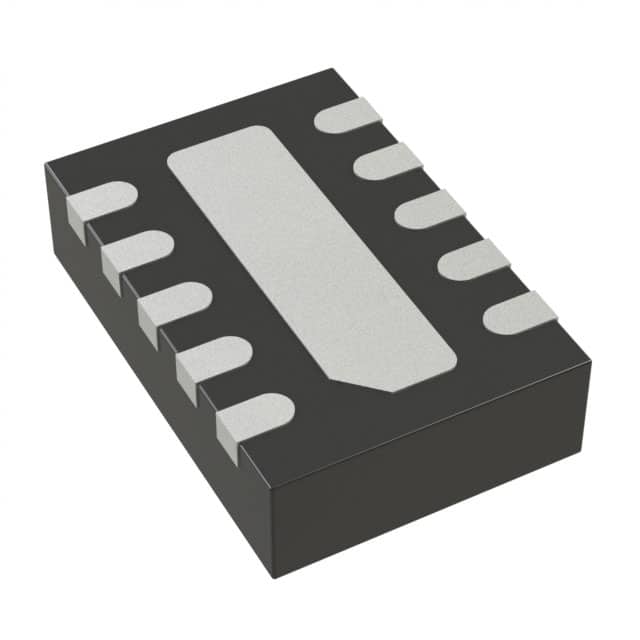

For picture reference, please see the specifications
< >

Commodity Model:LTC3225EDDB-1

Trade Name:Professional Power Management (PMIC)

Brand:ADI

Particular Year:25+

Package:DFN-10

Delivery Date:New and original

Stock: 3000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ADI
Model
LTC3225EDDB-1
Package
DFN-10
Describe
Professional Power Management (PMIC) 150mA Supercapacitor charger 10-DFN

Product Description

The LTC3225EDDB-1 is a programmable supercapacitor charger specifically designed to charge two series-connected supercapacitors to a fixed output voltage (4V / 4.5V) with an input power supply as low as 2.8V to 5.5V. Automatic unit balance processing can prevent any supercapacitor from being damaged by overvoltage. No balancing resistor is required.


The low input noise, low quiescent current and low number of external components (one bridge capacitor, one bypass capacitor placed on the VIN and one programmed resistor) make the LTC3225EDDB-1 an ideal choice for small battery-powered applications.


The LTC3225EDDB-1 mainly has the following functions:

Low-noise constant-frequency charging of two series supercapacitors

Automatic unit balance processing can prevent capacitor overvoltage from occurring during the charging process

Programmable charging current (up to 150mA)

Each unit is equipped with an optional 2.4V or 2.65V regulated voltage (LTC3225)

Each unit is equipped with an optional 2V or 2.25V regulated voltage (LTC3225-1)

Automatic recharging

In standby mode, IVIN = 20μA

ICOUT < 1μA (when the input power supply is removed)

No inductor

Compact application circuit (3mm x 2mm DFN package, the height of these components is all less than 1mm)


Target application

Current-constrained applications with peak power loads (LED flashlights, PCMCIA pulse transmission, HDD pulses, GPRS/GSM transmitters)

Backup power supply
