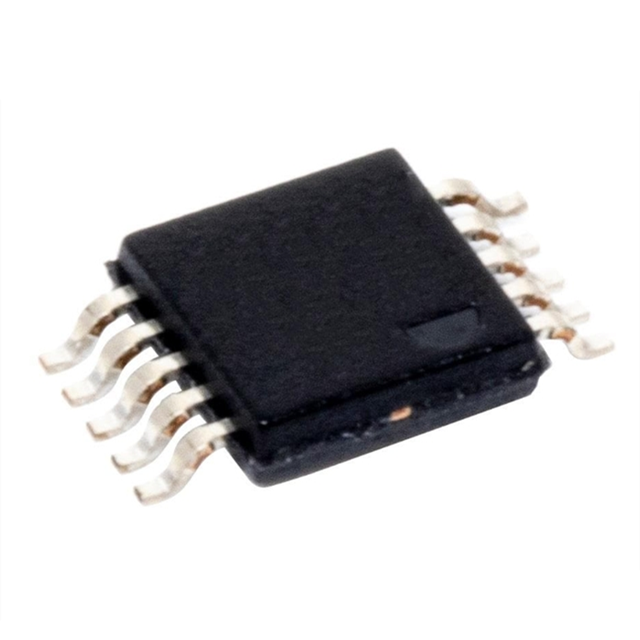

The LTC4371IMS is a dual-input negative-voltage ideal diode "or" controller, which is used to drive external N-channel MOSFETs and can serve as a low-dissipation alternative to Schottky diodes in high-power -48V systems. Low power dissipation and voltage loss eliminate the need for additional heat sinks and reduce the area of the PC board. The power supply can be easily "or" connected together to enhance the overall system power and reliability.

Main features

N-channel MOSFETs can be controlled to replace power Schottky diodes

A low forward voltage of 15mV minimizes dissipation to the greatest extent

It can withstand a transient voltage of > ±300V

Quick shutdown: < 220ns

Parallel regulation can be carried out for high-voltage applications

Minimum operating voltage of 4.5V

A low quiescent current of 350μA

5mA gate pull-up suitable for 60Hz applications

High-impedance drain pin: <10μA leakage

Fuse open circuit and MOSFET monitor

10-pin (3mm x 3mm) DFN and MSOP package

LTC4371IMS is widely applied in the following fields:

-48V telecommunication power supply

AdvancedTCA System

Network routers and switches

Computer system/server
