The LTC4370CDE is a dual power current sharing controller with an integrated MOSFET ideal diode. This diode is responsible for isolating the reverse current and through current during startup and fault conditions. Its forward voltage can be adjusted to share the load current between power supplies. Unlike other current-sharing methods, the LTC4370CDE does not require a shared bus or pin trimming on the power supply.

Key parameters

Type: Current-sharing controller

FET type: N-channel

Ratio - Input: Output: 2:1

Internal switch: None

Delay time - enabled: 400 ns

Delay time - off: 400 ns

Current - Output (maximum value) : -

Current - Power supply: 2.1 mA

Voltage - Power supply: 2.9V to 18V

Application: Redundant power supply, telecommunication infrastructure

Operating temperature: 0°C to 70°C

Installation type: Surface mount type

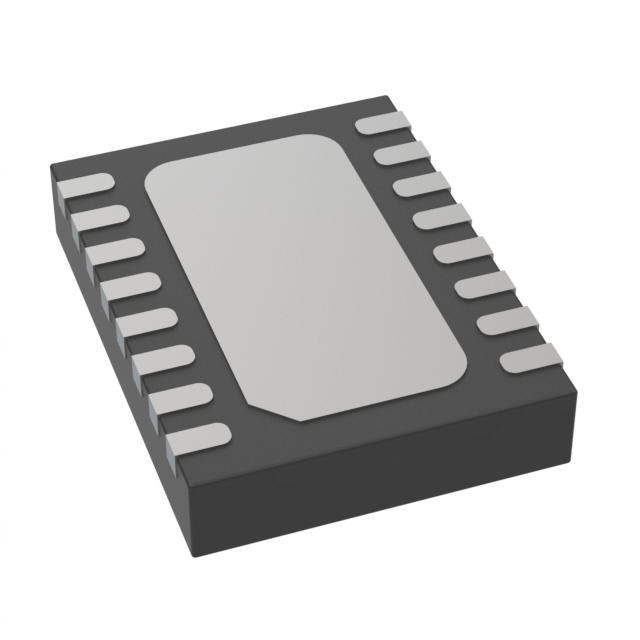

Package/Housing: 16-WFDFN

Target application

Redundant power supply

High availability systems and servers

Telecommunication and network infrastructure
